20-inch PP/UDF/CTO/Resin/UF Water Purifier with Multi-Stage Pre-Filter System

PP cotton, UDF, GAC, CTO, Resin,and UF filter cartridges are essential components in water filtration systems. We provide customers with the highest-performing filter cartridges and deliver optimal solutions for household water purification.
Available Materials: Plastic Housing, Plastic-Steel Composite,Stainless Steel
Available Filter Cartridges: PP Cotton, Granular Activated Carbon, CTO，Resin，UF Cartridges, etc.
Sizes: 20-inch
SEND INQUIRY WHATSAPP

Product Details

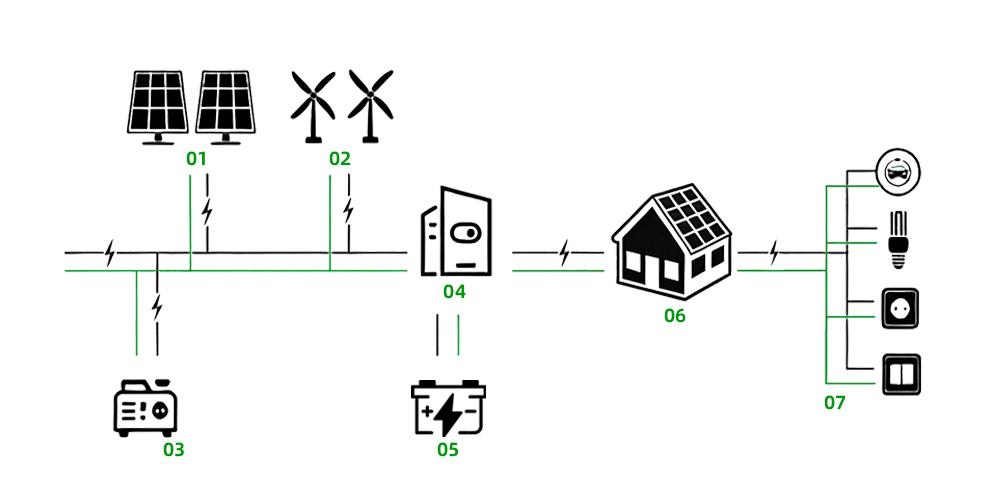

Integrated Housing Solutions



01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit



Product Description


During lengthy pipeline transportation, collected water is prone to secondary contamination, containing large particles such as silt and rust. A pre-filter provides the initial filtration, serving as the “first line of defense for household water safety.” It removes harmful substances from domestic water, safeguarding family health and extending the lifespan of water-using appliances.


Key Advantages


1.Multi-stage filtration
2.Modular configuration
3.Various housing materials
4.Adaptable to different water sources


Core Filtration Structure


Stage 1 – PP Sediment Filter
Removes sand, rust, and large particles
Stage 2 – GAC Carbon Filter
Removes residual chlorine, odors, and organic compounds
Stage 3 – CTO Carbon Block
Deep adsorption + precision filtration
Stage 4 – Ion Exchange Resin
Softens water and reduces hardness
Stage 5 – UF Membrane
Removes bacteria, colloids, and suspended solids

Typical Filtration Flow Structure：
Raw Water → PP → GAC → CTO → Resin → UF → Clean Water


Product Line Strategy


1.Basic Series Water Filter System
Outer Shell : Food-grade Plastic
Filter Configuration : PP → GAC → CTO

2.Advanced Household Filtration System
Outer Shell : Reinforced ABS Housing
Filter Configuration : PP → GAC → CTO → Resin → UF

Applications:
Whole House Water System
Rainwater System

3.Professional Whole-House Filtration System
Outer Shell : 304 / 316 Stainless Steel
Filter Configuration : PP → GAC → CTO → Resin → UF


Product Dimensions


Filter Cartridge Type Dimensions Housing Material Recommended Flow Rate (LPM) Recommended Applications
PP Cotton 20″ Plastic/ABS 10–25 Commercial, small offices, food service
PP Cotton 20″ Stainless Steel 15–50 High-flow commercial, industrial, manufacturing
CTO Activated Carbon 20″ Plastic/ABS 10–20 Commercial, small offices, food service
CTO Activated Carbon 20″ Stainless Steel 15–50 High-flow commercial, industrial, manufacturing
UDF Activated Carbon 20″ Plastic/ABS 10–20 Commercial, small offices, food service
UDF Activated Carbon 20″ Stainless Steel 15–50 High-flow commercial, industrial, manufacturing
Ion Exchange Resin 20″ Plastic/ABS 8–20 Commercial water softening systems, food service
Ion Exchange Resin 20″ Stainless Steel 15–50 High-flow water softening, industrial
UF Membrane 20″ Plastic/ABS 6–20 Commercial, office buildings, food service
UF Membrane 20″ Stainless Steel 15–50 High-flow commercial, industrial

20-inch PP cotton filter cartridge：

Product Name 20-inch 1-micron PP cotton / 20-inch 5-micron PP cotton
Filter Accuracy 1 micron / 5 microns
Filter Cartridge Weight 240g / 20g
Manufacturing Process Three-layer meltblown + needle-punched
Dimensions 508±1mm × 63±1mm, inner diameter 28mm
Filter Cartridge Function Removes large particulate impurities such as rust, silt, and turbidity
Service Life Approximately 3–6 months (actual lifespan depends on local water quality and usage volume)

20-inch granular activated carbon filter cartridge：

Product Name 20-inch Granular Activated Carbon Filter Cartridge
Carbon Raw Material Blended Carbon
Iodine Adsorption Value <900
Dimension Specifications 508±1mm × 63±1mm, Inner Diameter 28mm
Filter Cartridge Function Removes residual chlorine from water, adsorbs odors and discoloration
Service Life Approximately 6–9 months (actual service life depends on local water quality and usage volume)

20-inch compressed carbon filter cartridge：

Product Name 20-inch Compressed Carbon Filter Cartridge
Carbon Raw Material Activated Carbon
Iodine Adsorption Value <900
Dimension Specifications 508±1mm*63±1mm, Inner Diameter 28mm
Filter Cartridge Function Removes residual chlorine from water, deeply adsorbs odors and impurities
Service Life Approximately 6–9 months (actual lifespan depends on local water quality and usage volume)


20-inch ultrafiltration membrane filter cartridge：


Product Model 20-inch flat socket 20-inch plug socket
Specifications & Dimensions 51*7CM 52.5*7CM
Filtration Precision 0.01 micron
Water Flow Rate 3500 ml/min (25°C, 0.2 MPa)
Burst Strength <0.4 MPa
Operating Temperature 4~45°C
Replacement Cycle Recommended 12 months (depending on local water quality)


20-inch ion exchange resin filter cartridge：

Product Name 20-inch Resin Softening Filter Cartridge
Product Material Cation Exchange Resin
Working Pressure 0.1~0.4 MPa
Replacement Cycle Approximately 6 months
Product Dimensions 505mm x 70mm
