The high-flow whole-house water purification system is specifically designed to provide clean water for households, with a processing capacity ranging from 1,000 to 10,000 liters per hour. Its high flow rate ensures it meets all high-standard water demands for drinking, cooking, bathing, and more. Through a multi-stage filtration process, it effectively removes contaminants such as chlorine, sediments, and heavy metals, delivering a continuous and stable supply of high-quality water throughout the entire home.

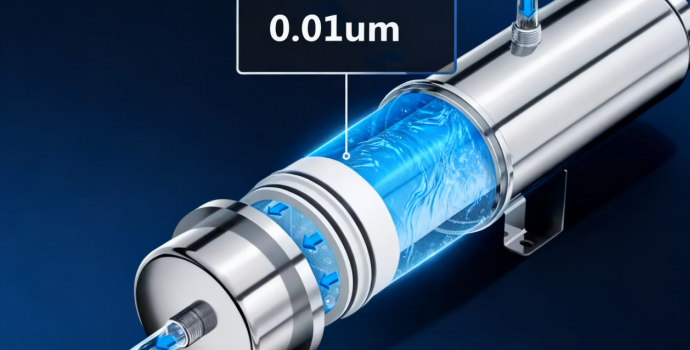

With a filtration precision of 0.01μm and a flow rate of 3000L/H, it is suitable for 1-2 faucets, delivering high-quality and stable water output. Rust, sand, and impurities are trapped on the outer surface of the membrane fibers, scientifically eliminating clogging issues caused by excessive contaminants.

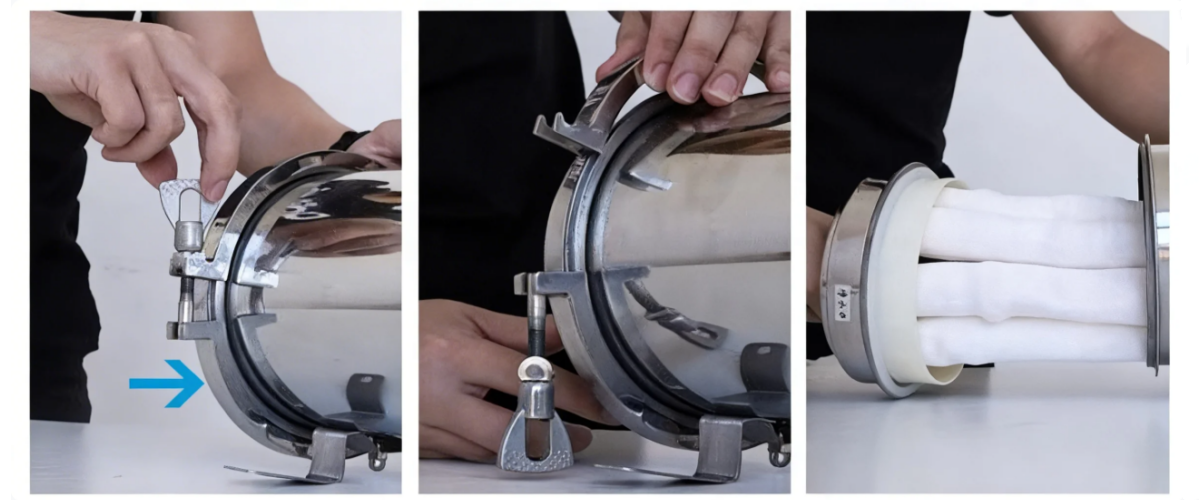

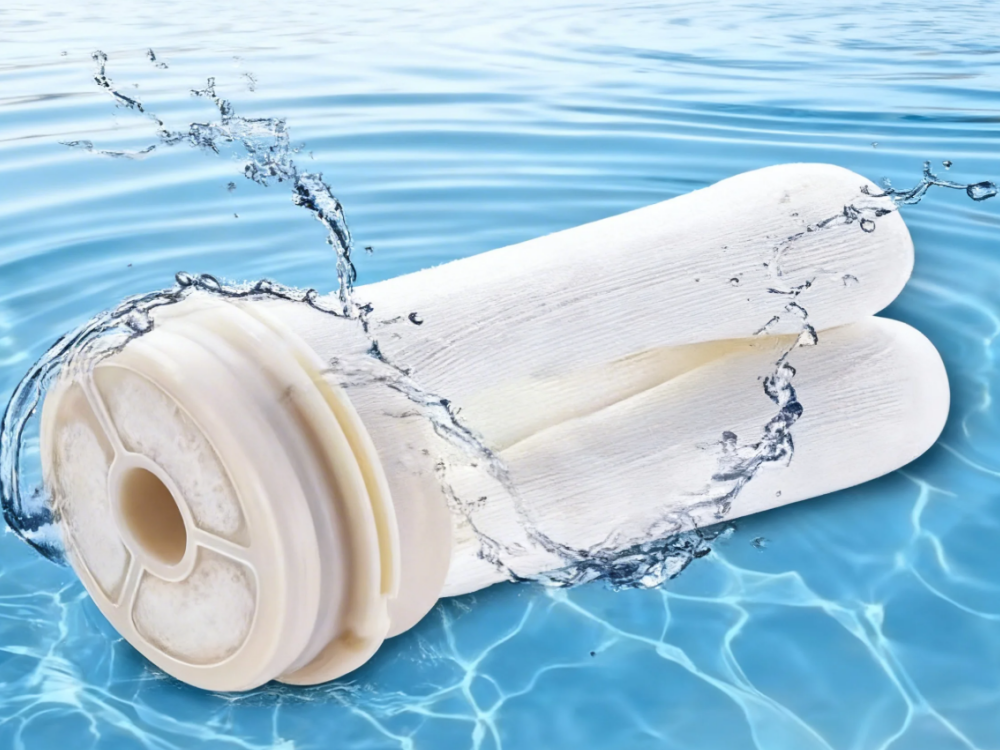

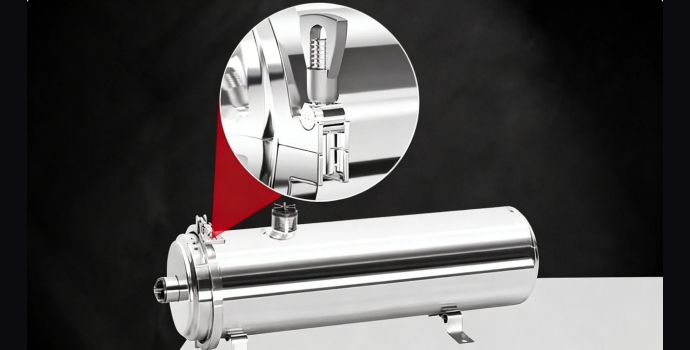

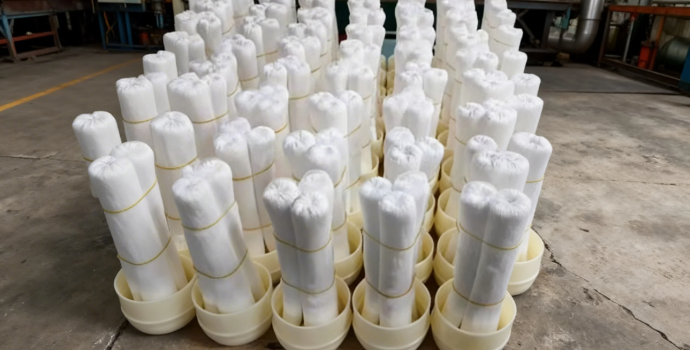

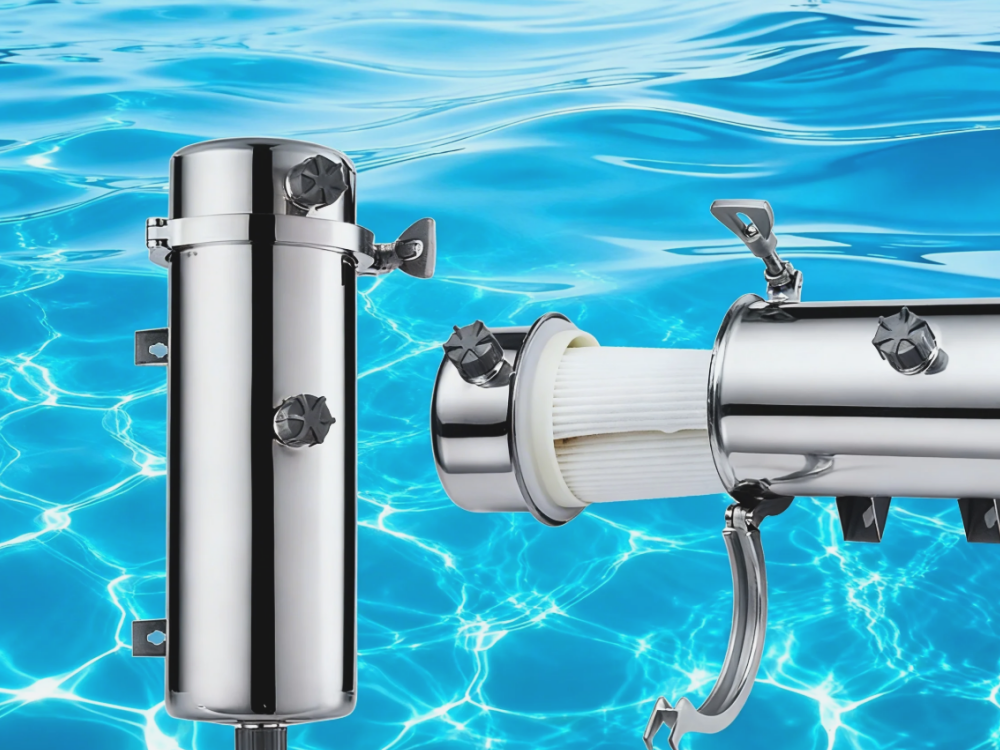

Precision-cast clamps allow disassembly and cleaning with a single button. The PVDF ultrafiltration membrane features enhanced fiber toughness, excellent hydrophilicity, and resistance to clogging and rupture. The filter cartridge can be cleaned multiple times.

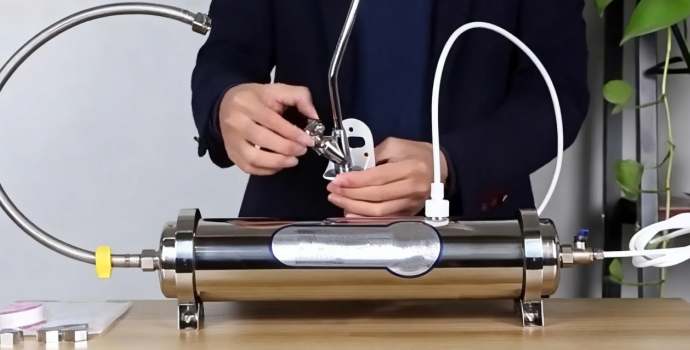

Our whole-house 304 stainless steel water purifier operates without electricity, ensuring convenient, on-demand use without power outage concerns. Filtered water is safe for direct consumption or can be boiled beforehand, depending on local water quality and individual health preferences.

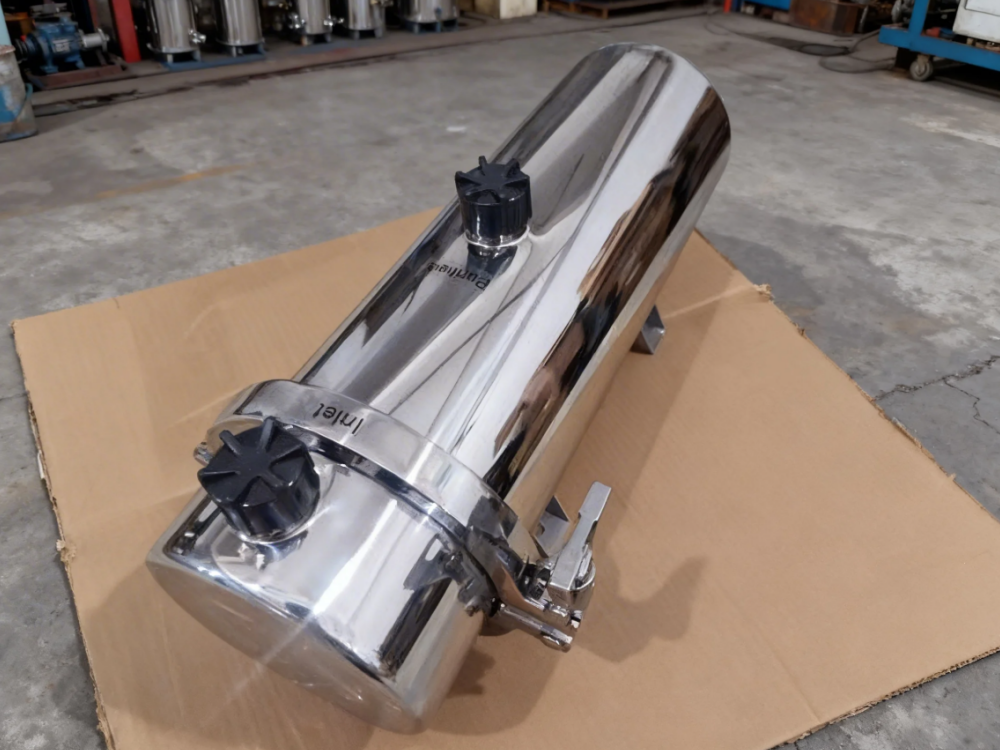

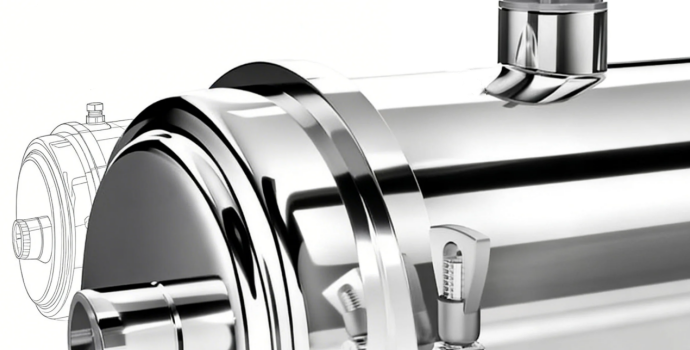

Crafted from 304 food-grade stainless steel, the filter housing is durable, explosion-proof, and pressure-resistant with a 1.8mm thickness, ensuring over 20 years of service life. The stainless steel body is integrally stamped, featuring dual-sealed connections for leak-proof safety. It has passed 200,000 dynamic water hammer pressure tests.
| Model | 1000 | 2000 | 3000 | 5000 | 8000 | 10000 |
| Pipe Diameter | 102 | 102 | 159 | 159 | 159 | 159 |
| Water Production Volume (L/H) | 1000L/H | 2000L/H | 3000L/H | 5000L/H | 8000L/H | 10000L/H |

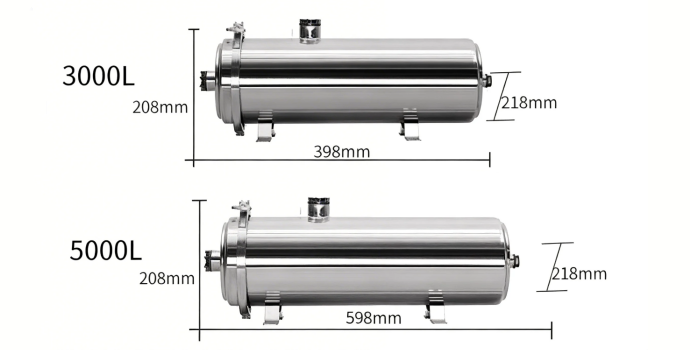

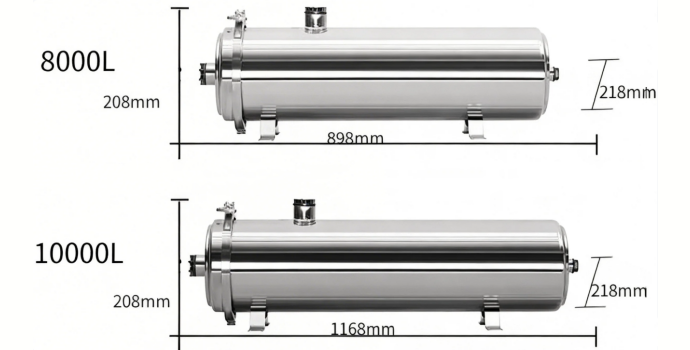

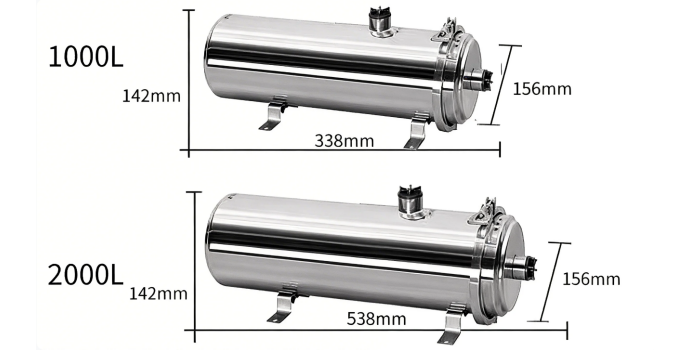

| Machine Specifications (L*W*H) | 338*156*142mm | 530*156*142mm | 398*218*208mm | 598*218*208mm | 898*218*208mm | 1168*218*208mm |
| Filter Specifications | 102*260 | 102*260 | 195*320 | 195*500 | 195*800 | 195*1000 |
| Interface (Internal/External) | 4 points of external teeth | one inch inner tooth | ||||
| Operating Water Pressure | 0.1–0.4 MPa | |||||
| Applications | Hotels, Villas, Factories, Communities, etc. | |||||
