The 48V 100Ah lithium-ion battery is a high-performance energy storage solution designed for electric vehicles, industrial equipment, and solar energy storage systems. It features high-quality lithium cells and an advanced BMS, ensuring safe, stable, and reliable operation. With high energy density, long cycle life, lightweight design, and eco-friendly performance, it provides an efficient and durable power storage solution.
1. High Energy Density
48V 100Ah system with 4.8kWh (4800Wh) capacity, providing stable and efficient power for daily and backup use.
2. Advanced BMS Protection
Built-in smart BMS protects against overcharge, over-discharge, overcurrent, short circuit, and temperature issues for safe operation.
3. Long Cycle Life
Designed for 2000+ cycles, ensuring long-lasting and reliable performance over years of use.
4. Heavy-Duty Design
Approx. 47 kg, built for stable fixed installation and seamless integration into energy storage systems.
| Nominal capacity | 100Ah |
| Cell model | 100A |
| Nominal voltage | 48V |
| Charge cut-off voltage | 58.4V ±0.09V |
| Discharge cut-off voltage | 44V |
| Charging method | CC-CV |
| Standard charging current | (0.2C) |
| Maximum continuous charging current | 40A |
| Maximum continuous discharge current | 100A |
| Maximum instantaneous discharge current | 150A |
| Operating temperature range | Charging temperature: 0–45°C Discharging temperature: -20–60°C |
| Storage temperature | Within 1 month: 0–40°C Within 6 months: 0–35°C |
| Internal resistance | ≤30mΩ |
| Storage voltage | 50V–53V |

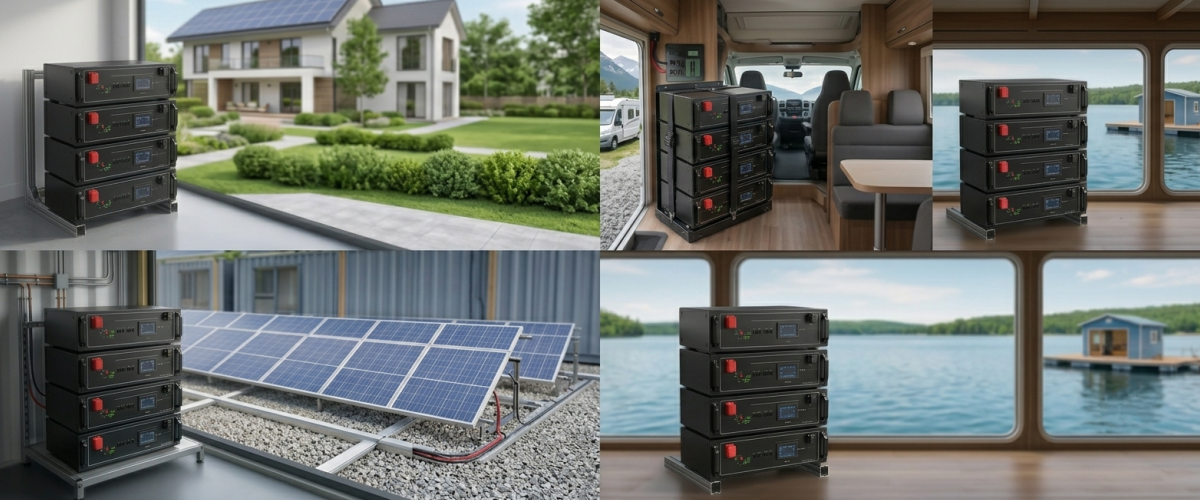

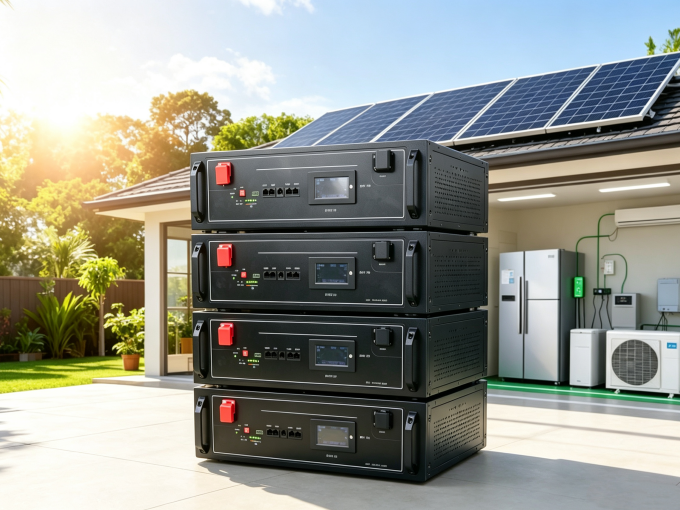

Ideal for off-grid, marine, and remote power systems where reliable and sustainable energy is essential, combined with wind turbines, solar systems, and inverters, this setup provides basic power for lighting, refrigerators, communication equipment, and more.
