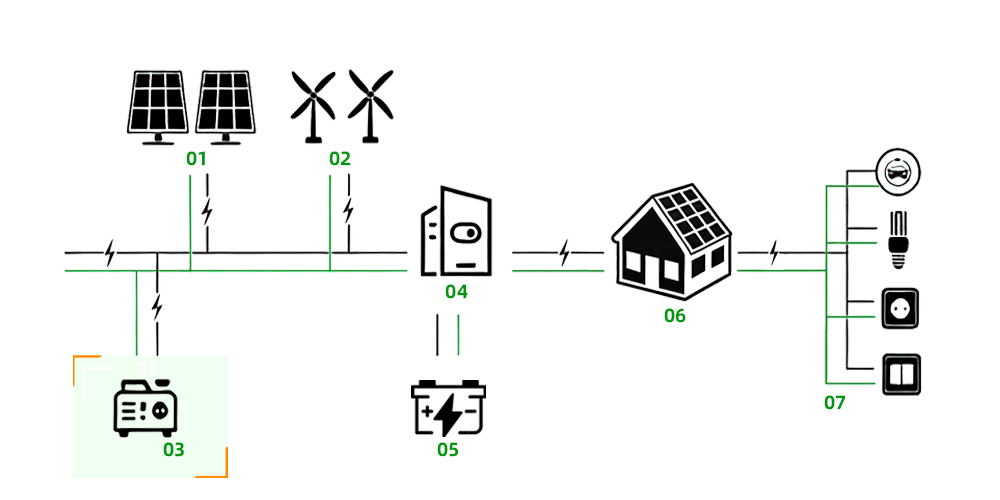

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads
01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

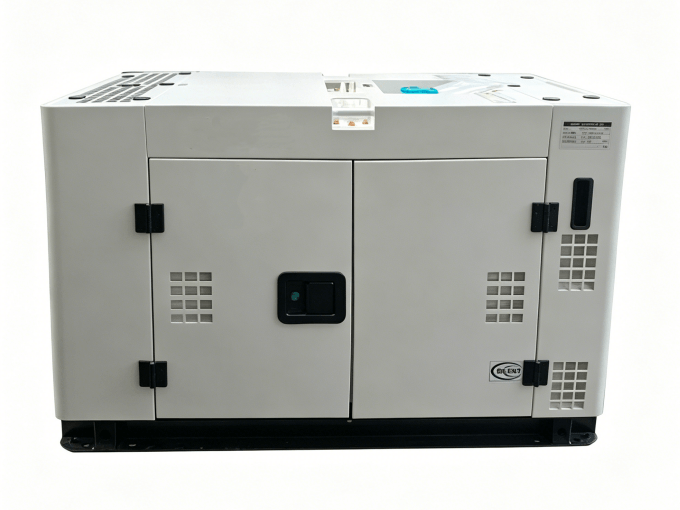

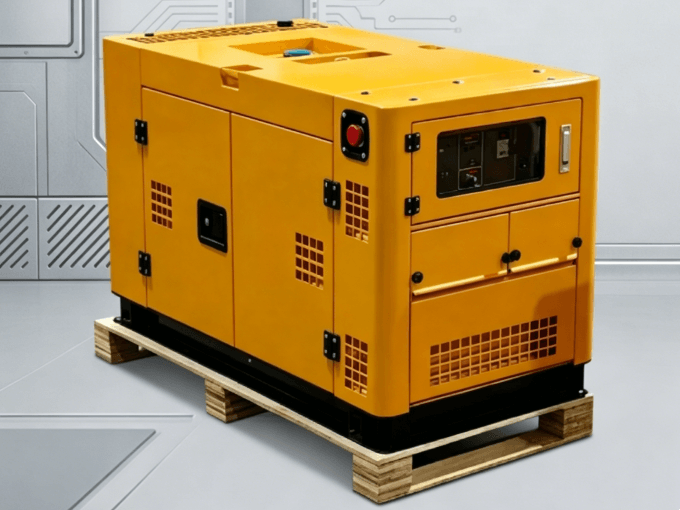

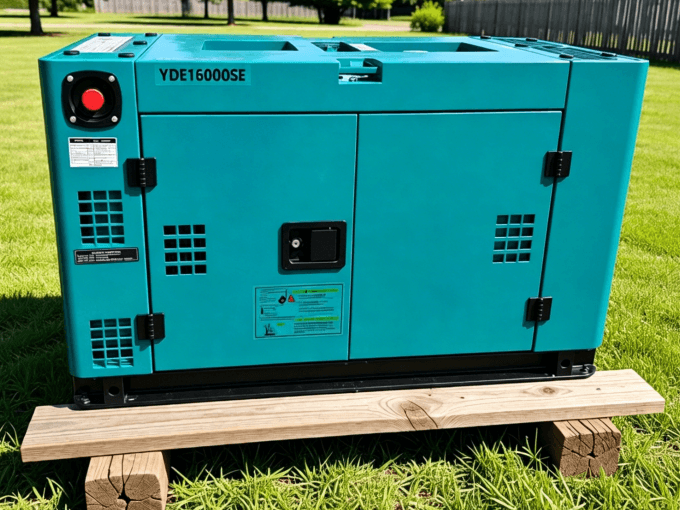

This silent generator is a highly efficient and stable power solution, featuring premium components and an optimized design. It offers reliable performance, long service life, a compact structure, and easy operation. Suitable for various working conditions, it balances high efficiency with energy savings. Ideal for residential backup power as well as off-grid and temporary power supply applications.
1.High Efficiency Output: Powerful and stable performance with brushed design and built-in AVR automatic voltage regulation, ensuring low energy consumption and high efficiency for continuous operation.
2.Low Noise Operation: 65–75 dB at 7 meters, comparable to normal conversation.
3.Durable and Reliable: Made with premium materials and precision craftsmanship, featuring full copper windings for extended service life.
4.Energy Saving & Eco-Friendly: Optimized for lower energy consumption, reducing operating costs.
5.Easy to Operate: Well-designed structure with multi-door maintenance access for simple installation and upkeep.
6.Wide Applicability: Suitable for residential backup power and various off-grid or temporary power applications.
| Model | DG-10T(50Hz) | DG-10T(60Hz) | DG-11T | DG-12T | DG-15T | DG-16T | DG-18T(50Hz) | DG-18T(60Hz) | |
| GENERATOR SET | Frequency (Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Max Power (kW) | 10.5 | 11 | 12 | 12.5 | 16 | 16.5 | 20 | 20 | |
| Rated Power (kW) | 9.5 | 10 | 11 | 11.5 | 15 | 15.5 | 18 | 18 | |
| Rated Voltage (V) | 120 / 220 / 230 / 240 / 380 / 400 | ||||||||
| Phase | Single / Three | ||||||||
| Altermator Type | Self-excited with AVR | ||||||||
| Starting System | Electric | ||||||||
| Noise Level at 7m (dBA) | 72-74 | ||||||||
| Fuel Tank Capacity (L) | 26 | ||||||||
| Running Time (h) | 8 | 7 | |||||||
| ENGINE | Engine Type | 2-cylinder , V-twin/L-twin , Air-cooled , 4-stroke Diesel Engine | |||||||
| Combustion System | Direct | Turb,Direct | |||||||
| Displacement (mL) | 876 | 997 | 1247 | 1523 | |||||
| Engine Power (kW) | 12.5 | 13.5 | 14 | 15 | 19 | 20 | 21 | 23 | |
| Fuel Type | 0# or 10# light disel fuel | ||||||||
| Lub oil Capacity (L) | 2.7 | 2.8 | 3.8 | 4.5 | |||||
| DIMENSION | Packing Size (mm) | 1140*700*880 | 1350*700*880 | 1400*770*930 | |||||
| Product Dimensions | 1090*650*750 | 1300*650*750 | 1350*720*800 | ||||||
| Gross Weight (kg) | 300 | 320 | 340 | 380 | |||||
| Quantity per 20ft Container | 24 | ||||||||
| Quantity per 40ft High Container | 78 | ||||||||

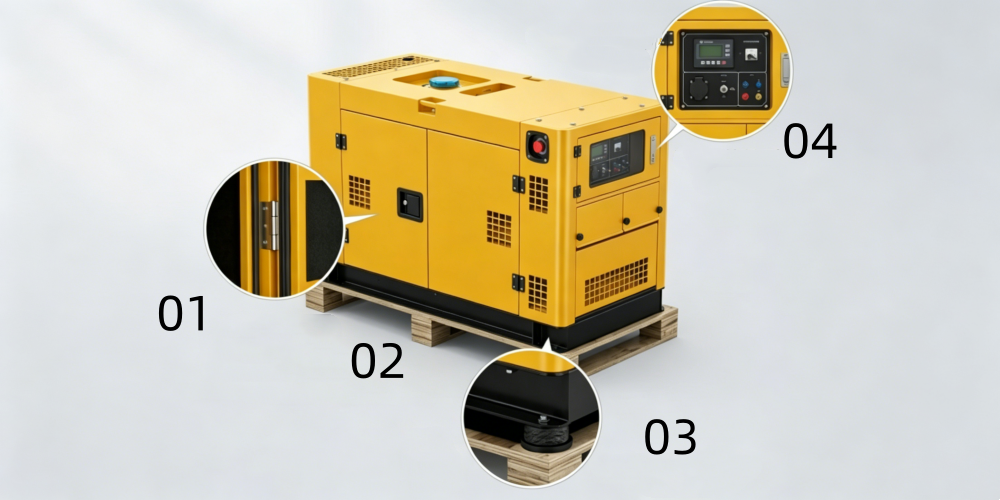

01 Fully enclosed metal enclosure
Combined with rubber sealing strips, it effectively blocks noise transmitted through the air.
02 Multi-door inspection design
Maintenance is made easier and more convenient for daily use.
03 Vibration-damping structure
Reduces machine vibration, resulting in more stable operation

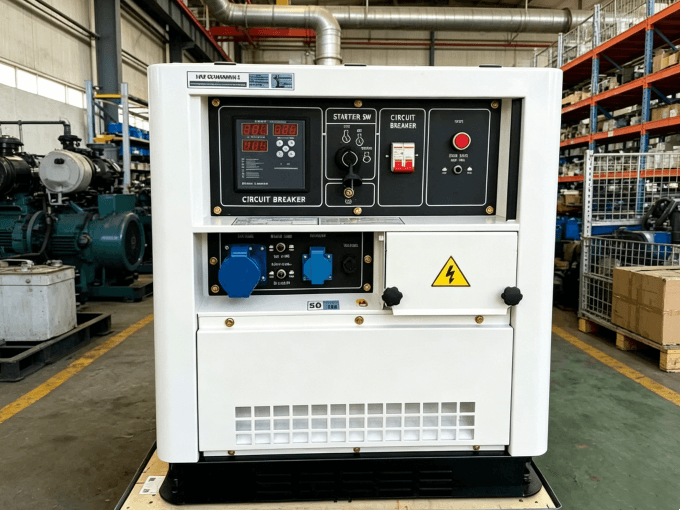

04 Embedded control panel
Intuitive operation ensures a smooth and effortless user experience

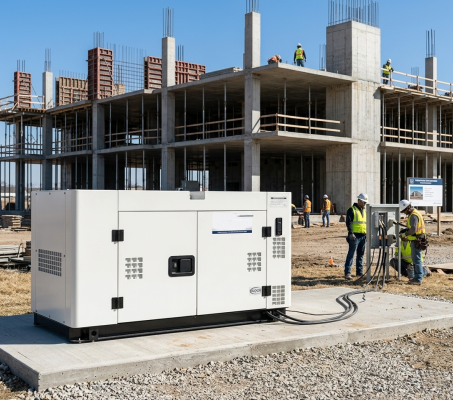

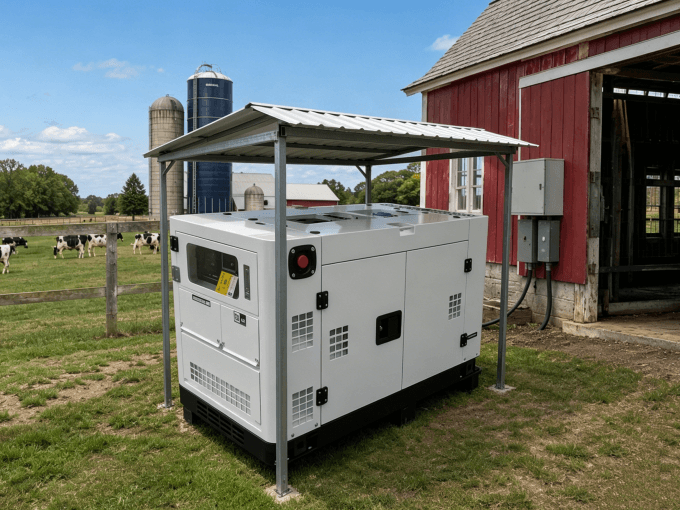

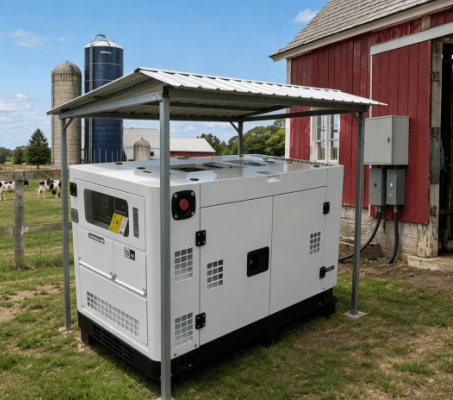

Suitable for residential backup power, construction projects, outdoor operations, emergency power supply, and various off-grid or temporary power applications.
1.Will it be noisy?
Noise is controlled at 65–75 dB at 7 meters, comparable to normal conversation.
2.Can it run continuously?
Powered by a high-torque diesel engine, suitable for long-term continuous operation.
3.Is it stable for sensitive equipment?
Output voltage fluctuation ≤ ±1%.
4.Can it operate in extreme temperatures?
Operating temperature range: -20°C to 50°C; some models can start in temperatures as low as -40°C.
