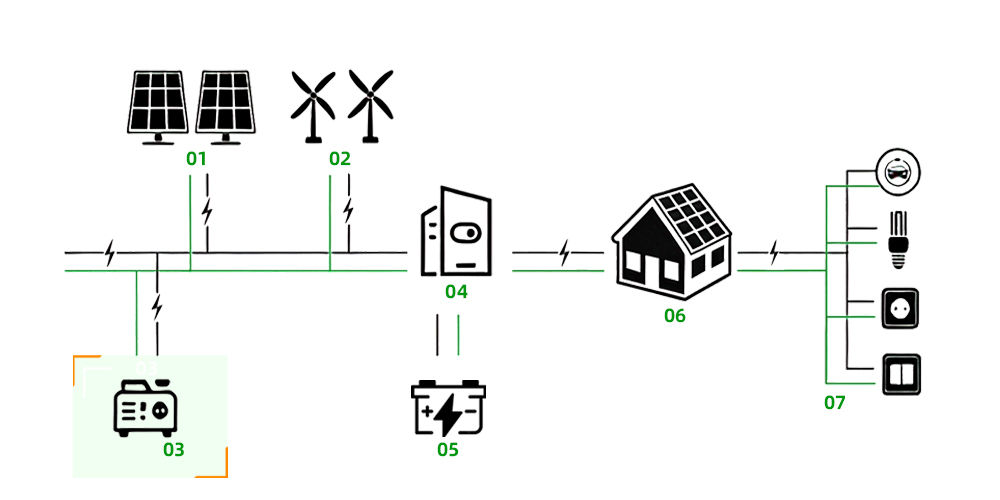

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads
01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

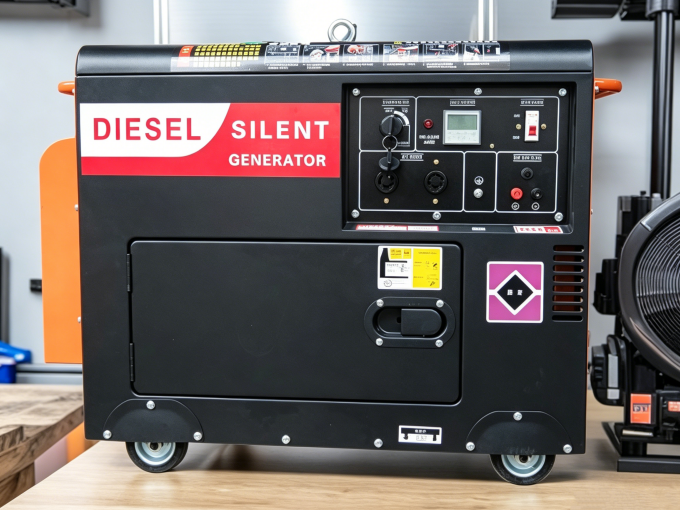

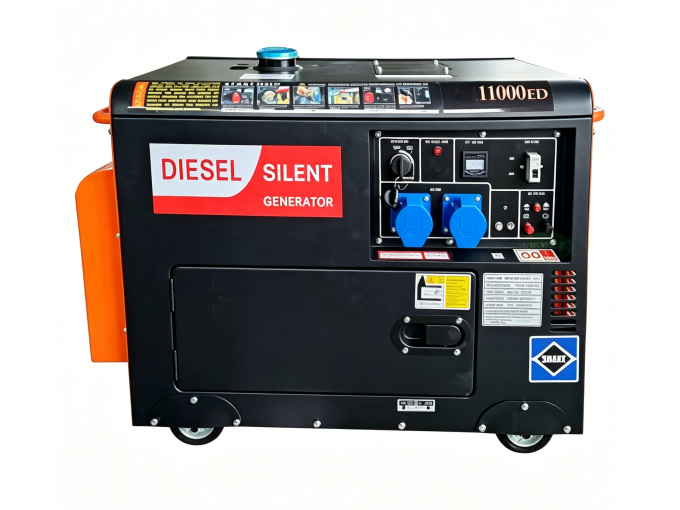

This product is a silent generator set with a low-noise casing design, effectively reducing operating noise while ensuring stable power output, making it suitable for scenarios with high noise control requirements. An open-frame version is also available for easy movement and routine maintenance.
The unit is equipped with a high-performance engine and power generation system, featuring stable start-up, reliable operation, and stable output voltage, and can be used as a main power source or backup power source.
1. Ultra-quiet operation
Adopting a silent enclosure design, it significantly reduces operating noise, suitable for residential and commercial environments.
2. Stable and reliable power supply
Stable output voltage, compatible with various electrical equipment, supporting long-term continuous operation.
3. High-efficiency and energy-saving engine
Powerful engine with high fuel efficiency. Good starting performance and low failure rate.
4. Automatic Fuel Saving & Voltage Stabilization
Automatically adjusts fuel consumption based on load, improving efficiency and reducing waste. Built-in AVR ensures stable output voltage under varying loads, protecting connected equipment.
5. Multi-level Protection System
Equipped with low oil alarm, high temperature protection, short-circuit protection, and overload protection. Ensures safe operation and prevents engine damage during abnormal conditions.
| Rated Power | 3.0KW | 5-6.5KW | 7-9KW |
| Maximum Power | 3.5KW | 5.5-7KW | 8-10KW |
| Rated Voltage | 220V | 220V/380V | 220V/380V |
| Rated Current | 12.9A | 21.5A/27.9A | 34.4A/43A |
| Noise | 75dB | 75dB | 75dB |
| Displacement | 296CC | 418CC | 498CC |
| Power Type | Single-cylinder vertical direct injection four-stroke | ||
| Fuel Consumption | Approx. 0.55L/hour | 0.6-1L/hour | 1.1-1.3L/h |
| Fuel Tank Capacity | 16L | 16L | 16L |
| Oil Capacity | 1.2L | 1.6L | 1.6L |
| Silent Unit Weight | 120KG | 155KG | 165KG |
| Open Shelf Unit Weight | 82KG | 110KG | 120KG |
| Silent Dimensions | 905*530*750mm | 905*530*750mm | 905*530*750mm |
| Open Shelf Dimensions | 680*480*550mm | 730*500*620mm | 730*500*620mm |

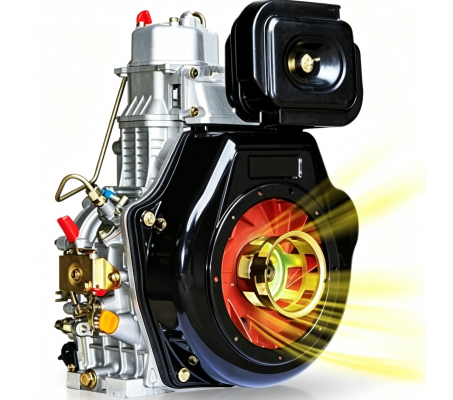

Power
4-stroke diesel, air-cooled, direct injection, fuel-efficient, complete combustion

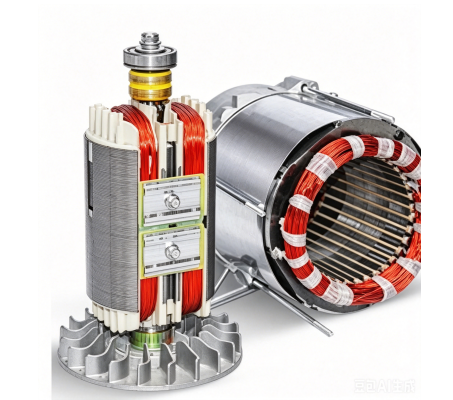

All-Copper Motor
Copper winding motor, AVR voltage regulation, easy maintenance, high torque, stable outpu

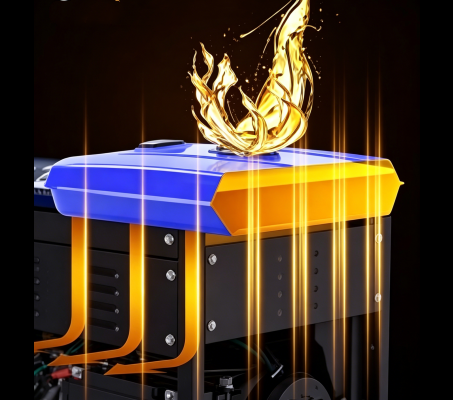

Large Fuel Tank
15L fuel tank, long runtime, extended operation capacity

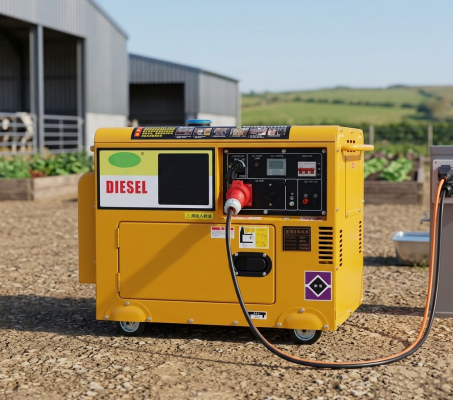

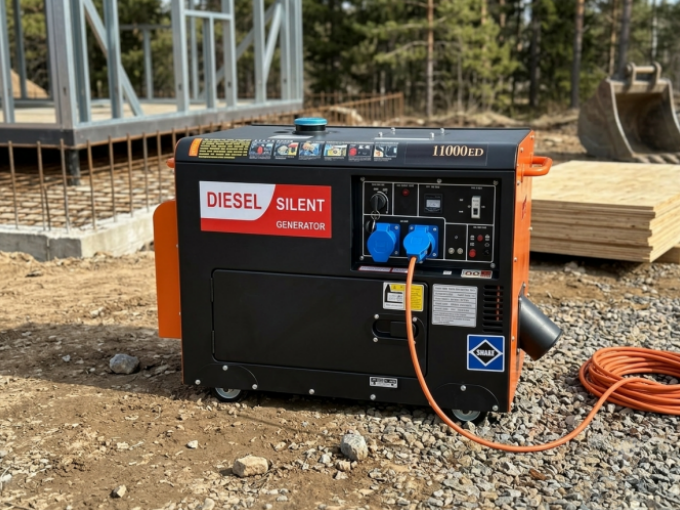

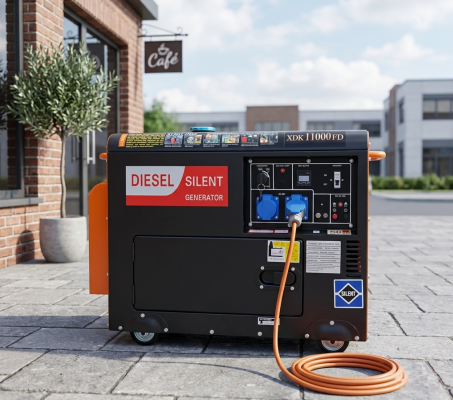

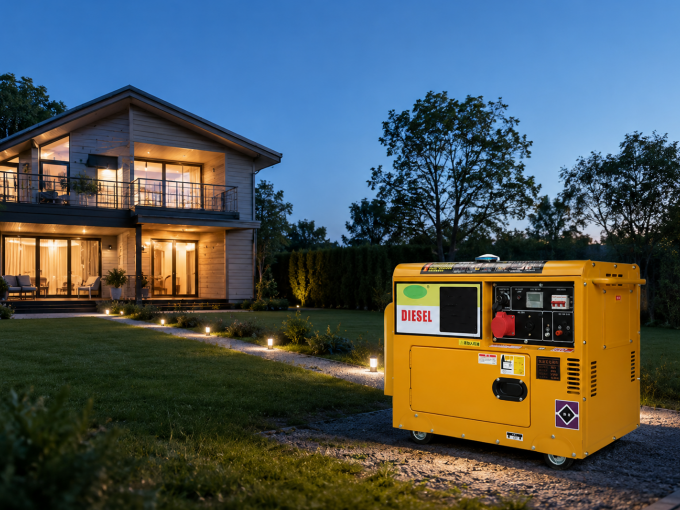

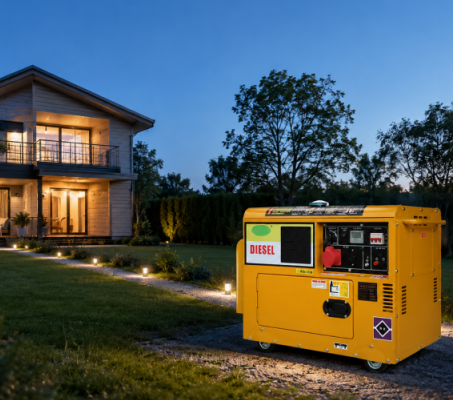

Suitable for home backup power, villas, farms, construction sites, remote areas, outdoor projects, emergency power supply, and small commercial use.

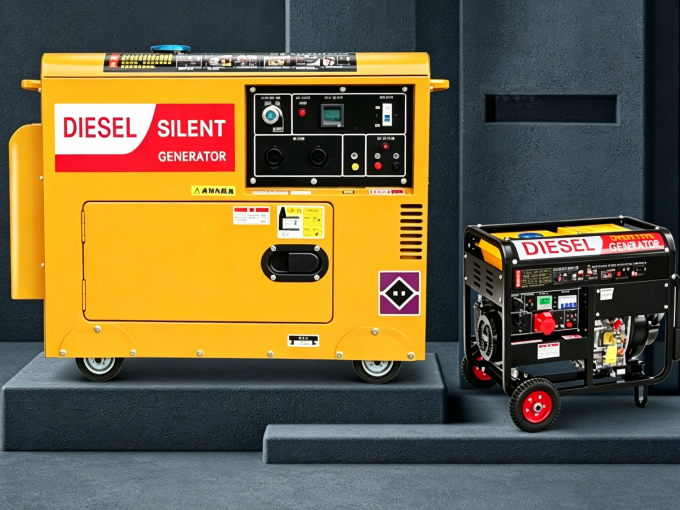

1. What is the biggest difference between the silent version and the open-shelf version?
Silent version: Low-noise, noise-isolating design, high-strength protective shell.
Open-shelf version: Easy to move, convenient for daily maintenance, and good heat dissipation.
2.Will it be noisy?
Noise is controlled at 75 dB at 7 meters, comparable to normal conversation.
