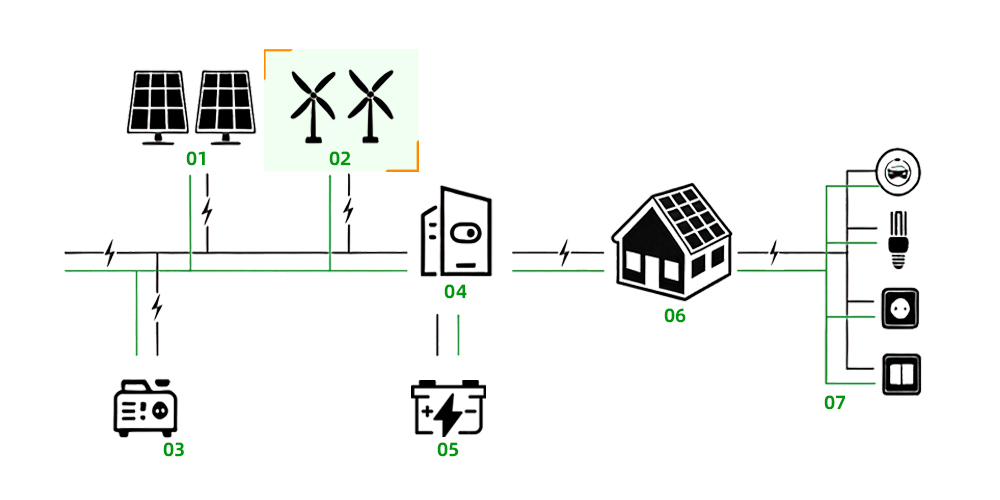

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

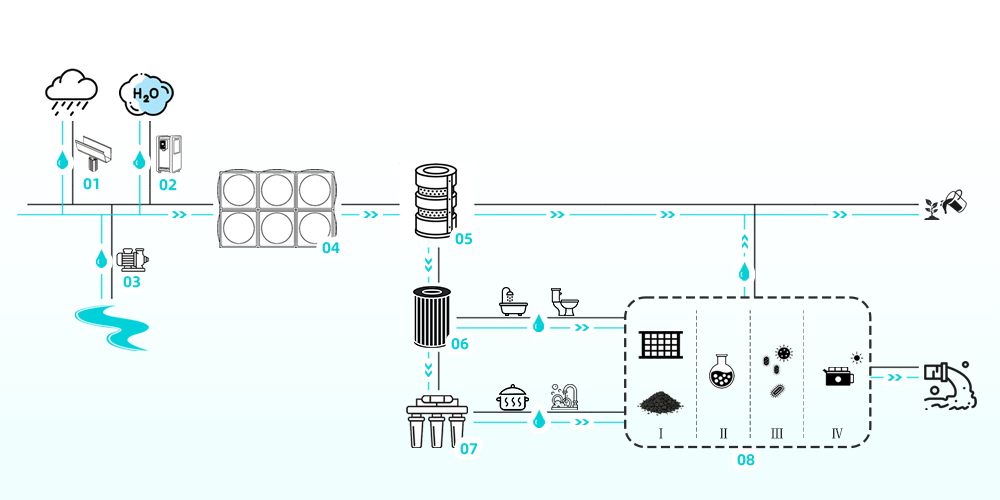

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

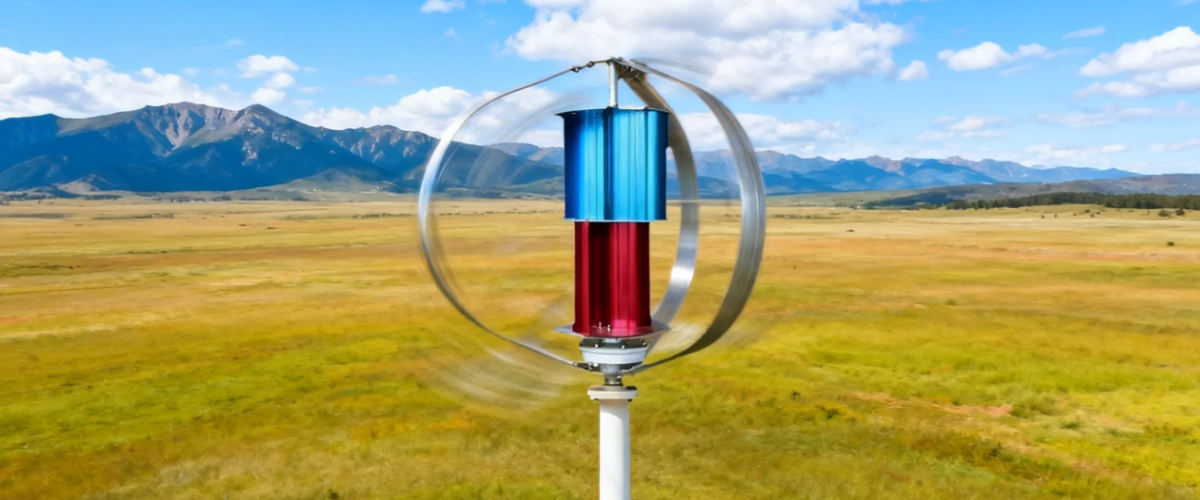

The Q-type wind turbine delivers fast startup and stable performance in low winds, with a vertical-axis design that captures wind from any direction. It operates quietly with low vibration, and its modular, weather-resistant structure ensures reliable, eco-friendly use.

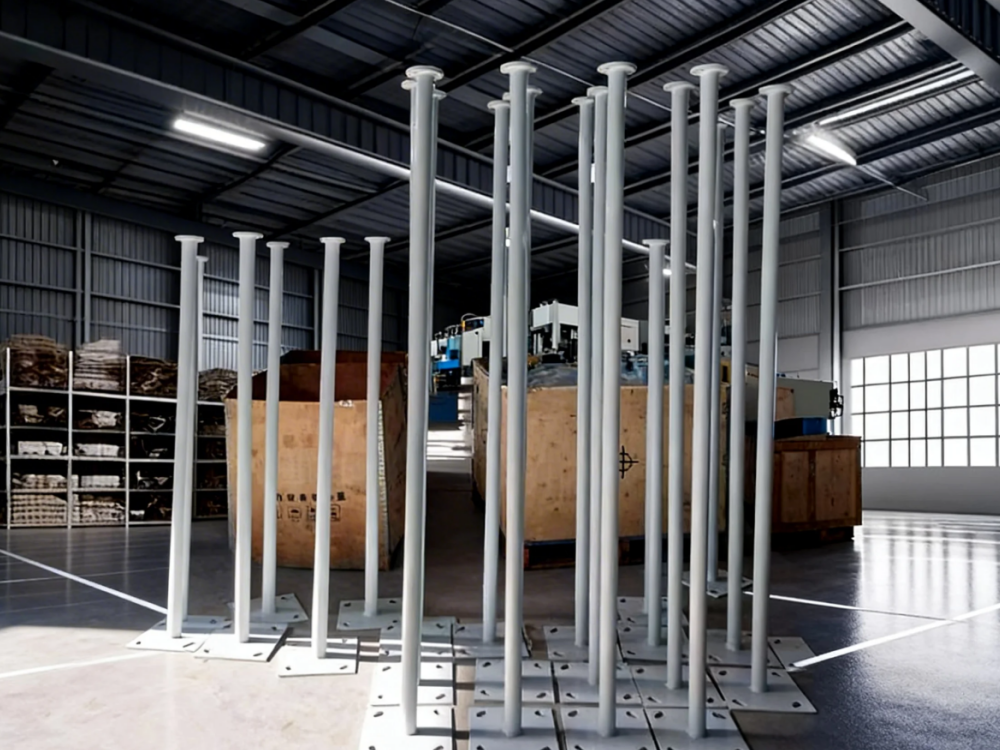

The mounting pole offers strong, stable support with high-strength, corrosion-resistant steel, ideal for long-term outdoor use in off-grid, residential, and hybrid systems.
1 kW fan + 6 m pole
3 kW fan + 9 m pole
5 kW fan + 12 m pole
1. Low operating noise, low start-up airflow
2. 360°automatic wind-seeking
3. Excellent heat dissipation performance
4. Suitable for streetlight , monitoring, landscape islands, and various other applications
| Rated Power | 100W | 200W | 300W |
| Maximum Power | 130W | 220W | 310W |
| Rated Voltage | 12V / 24V | ||
| Start-up Wind Speed | 1.5m/s | ||
| Rated Wind Speed | 10m/s | 11.5m/s | 13m/s |
| Safe Wind Speed | 45m/s | ||
| Net Weight of Main Unit | 12kg | 12.5kg | 13kg |

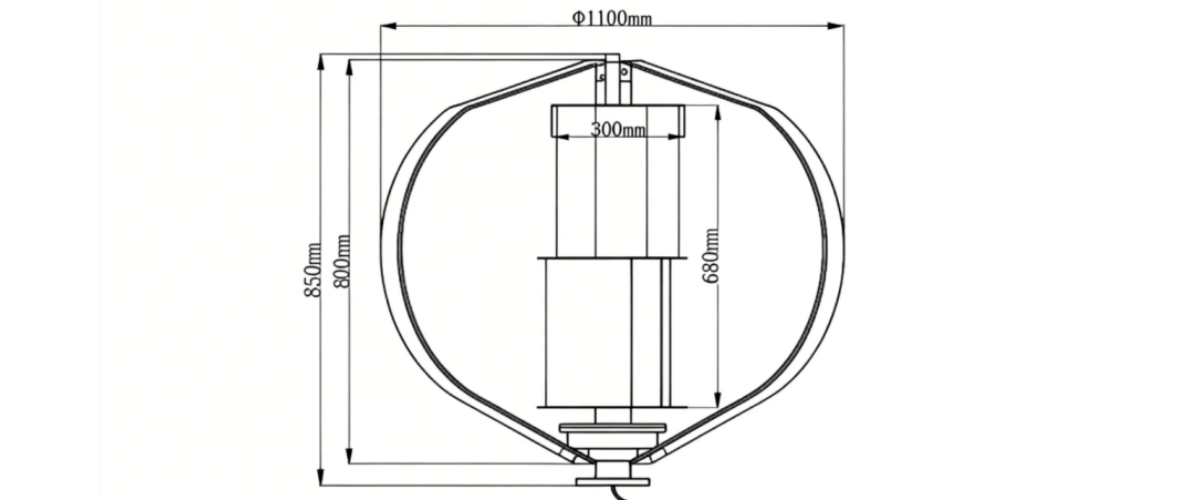

| Rotor Diameter | 1.1m | ||
| Number of Blades | 6 pieces | ||
| Blade Material | Aluminum alloy | ||
| Generator | Three-phase AC permanent magnet generator/permanent magnet levitation generator | ||
| Braking Method | Automatic wind-seeking | ||
| Operating Temperature | -40°C~80°C | ||
| Wind Turbine Power | Recommended Pole Height | Pole Diameter | Wall Thickness | Support Type |
| 300W – 500W | 3m – 6m | 60–76mm | 2.0–2.5mm | Free-standing / Optional guy wire |
| 600W – 1kW | 6m – 9m | 76–89mm | 2.5–3.0mm | Guy wire recommended |
| 2kW – 3kW | 9m – 12m | 89–114mm | 3.0–4.0mm | Guy wire required |
| 5kW | 12m – 18m | 114–140mm | 4.0–5.0mm | Reinforced + guy wire |
| 10kW | 18m – 24m | 140–219mm | 5.0–6.0mm | Tower structure (not simple pole) |
Rare Earth Permanent Magnet Spherical Generator
Low starting torque with high power conversion efficiency; high power output and low losses
Premium Aluminum Alloy Blades
Enhanced corrosion resistance and improved wind resistance
Low operating vibration
Low Start-Up Wind Speed, Compact Size, Aesthetic Design, Low Operational Vibration, Ultra-Quiet Operation
User-Friendly Flange Design
Features ergonomic flange mounting for simplified installation and maintenance
This Q-type vertical axis wind turbine is ideal for a wide range of off-grid and distributed energy applications, including remote homes, cabins, islands, farms, and robot shelters. Its low wind startup and stable output make it especially suitable for powering autonomous systems, monitoring stations, and robotic habitats in isolated environments where reliable, low-maintenance energy is essential.
Residential

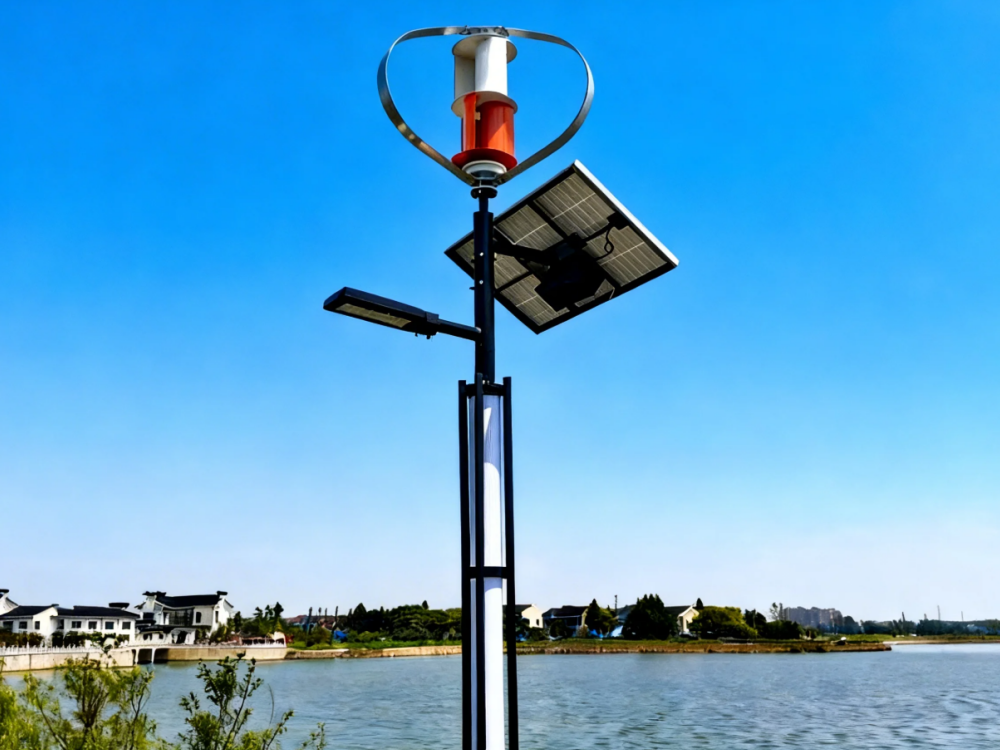

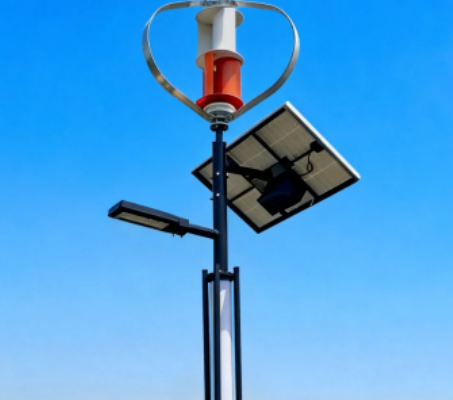

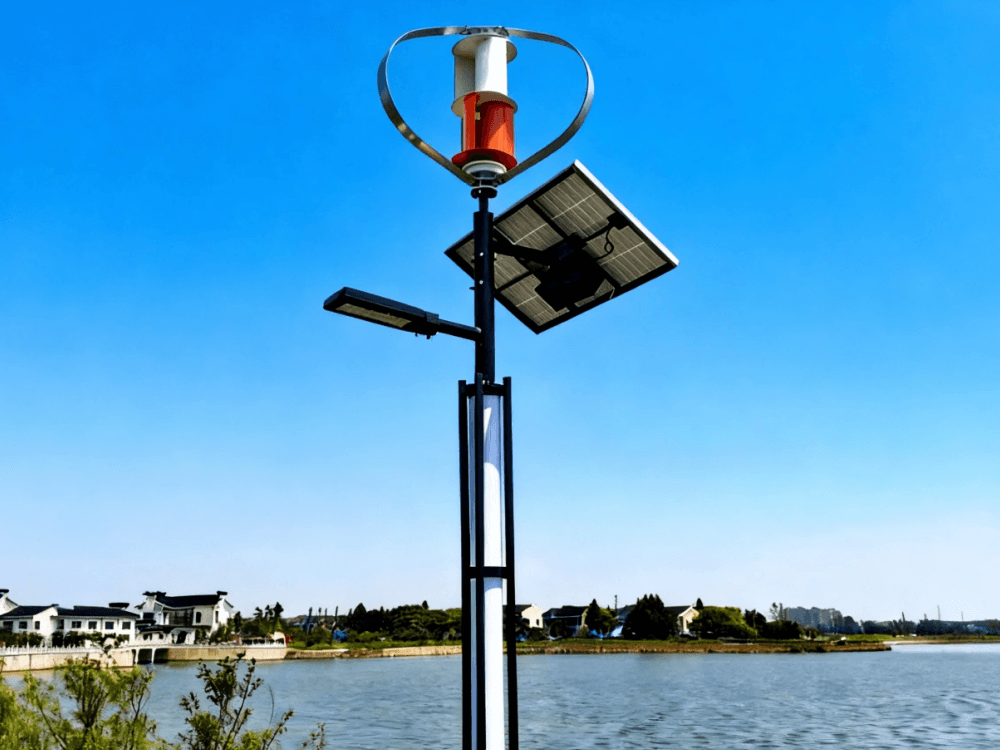

Streetlights
Landscape Islands
