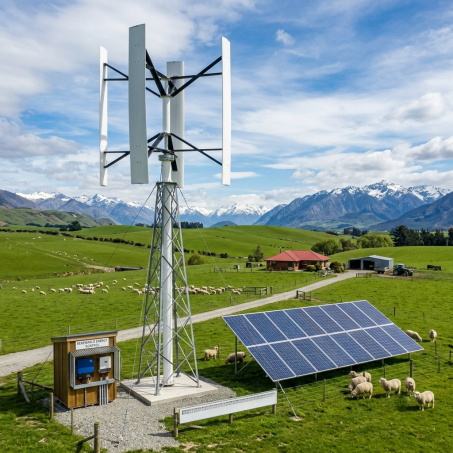

The Custom Hybrid Energy System combines wind turbines, solar panels, battery storage, intelligent controllers, and inverters into a complete renewable energy solution. Designed for both on-grid and off-grid applications, the system can be customized from 5kW to 50kW according to local wind resources, solar conditions, power consumption, and project requirements.
Whether powering a single cabin, a farm, a resort, a communication station, or a remote community, the system provides stable, clean, and cost-effective electricity with reduced dependence on traditional energy sources.
1. Customized from 5kW to 50kW;
2. Flexible Wind & Solar Ratio Design;
3. On-Grid, Off-Grid or Hybrid Configuration;
4. Low Start-Up Wind Speed Wind Turbine;
5. High-Efficiency Monocrystalline Solar Panels;
6. Lithium or Gel Battery Options;
7. Intelligent MPPT / PWM Controller;
8. Pure Sine Wave Inverter Output;
9. Optional WiFi Remote Monitoring;
10. Low Maintenance & Long Service Life.

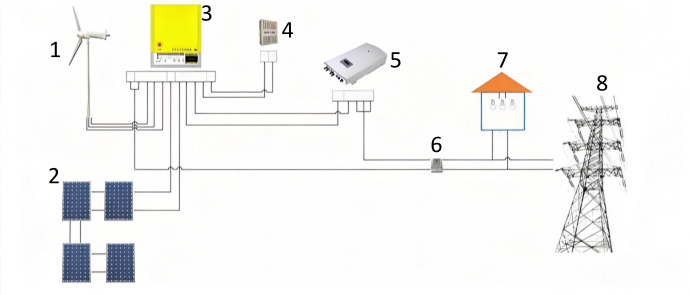

Grid Tie System
| 1 | Wind Turbine | 2 | Solar panels |
| 3 | Solar&Wind controller | 4 | Dump load |
| 5 | On-Grid invertor | 6 | Electrical meter |
| 7 | Load | 8 | Grid |

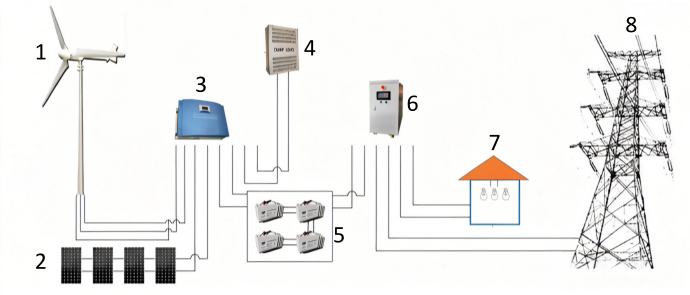

Off-Grid System
| 1 | Wind Turbine | 2 | Solar panels |
| 3 | Solar&Wind controller | 4 | Dump load |
| 5 | Battery | 6 | Invertor |
| 7 | Load | 8 | Grid |
| Item | Specification |
| System Capacity | 5kW-50kW |
| Application Type | On-Grid / Off-Grid / Hybrid |
| Wind Turbine Power | 1kW-20kW Optional |
| Solar Panel Power | 100W-700W Modules |
| Solar Array Capacity | Customizable |
| Battery Type | Lithium / Gel |
| Battery Capacity | Customizable |
| Inverter Type | Pure Sine Wave |
| Output Voltage | 110V / 220V / 380V |
| Output Frequency | 50Hz / 60Hz |
| Controller Type | PWM / MPPT |
| Monitoring | WiFi / APP Optional |
| Protection Level | IP54-IP65 |
| Design Life | 30-40 Years |
A complete hybrid energy system consists of six core components that work together to generate, store, manage, and deliver reliable renewable energy for a wide range of applications.

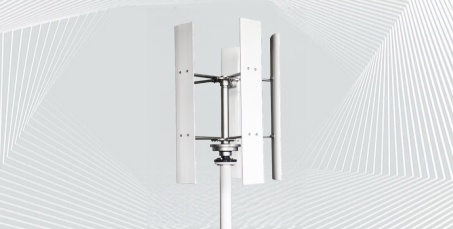

1. Permanent Magnet Wind Turbine
Designed for low wind conditions, featuring a permanent magnet generator and optimized blades for stable, efficient, long-term performance.
· Low Start-Up Wind Speed
· High Power Generation Efficiency
· Durable Fiberglass Blades
· Low Maintenance Requirements

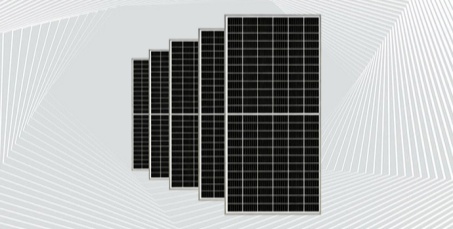

2. High-Efficiency Solar Power Modules
Supports monocrystalline and flexible solar panels for efficient energy generation and flexible installation.
· Monocrystalline Solar Technology
· Flexible Panel Option Available
· Excellent Weather Resistance
· Long Service Life

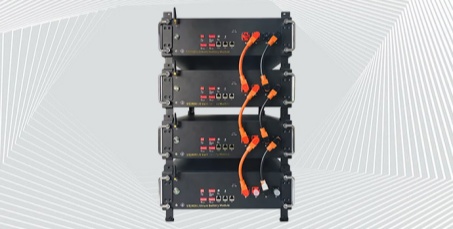

3. Battery Energy Storage System
Stores excess wind and solar energy and provides reliable power when generation is insufficient. Custom battery capacity available.
· Lithium or Gel Battery Options
· Reliable Energy Storage
· Long Cycle Life
· Custom Capacity Design

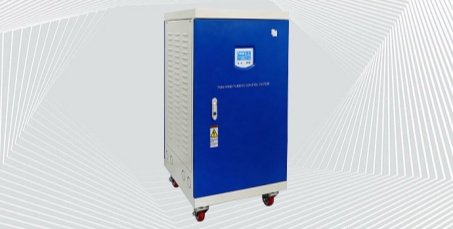

4. Intelligent Hybrid Controller
Manages wind and solar input, battery charging, and load distribution to ensure efficient and stable system operation.
· PWM / MPPT Optional
· Intelligent Charging Management
· Multiple Protection Functions
· Stable System Operation

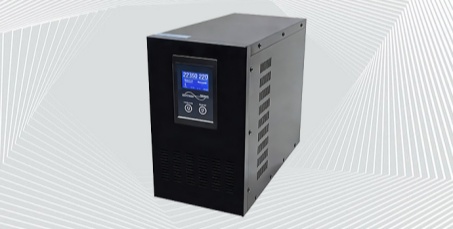

5. Pure Sine Wave Inverter
Converts DC power into stable AC electricity for residential, and industrial use. Multiple voltage options available.
· Pure Sine Wave Output
· High Conversion Efficiency
· Single & Three Phase Available
· Optional WiFi Monitoring

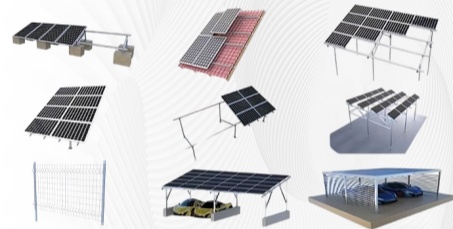

6. Flexible Mounting Structure
Supports rooftop, ground, wall, and pole installations with durable, high-strength design for various environments.
· Multiple Installation Methods
· Corrosion Resistant Materials
· Strong Structural Stability
· Suitable for Various Terrains
The Custom Hybrid Energy System is designed for a wide range of on-grid and off-grid applications where reliable and sustainable power is required. By combining wind and solar energy with battery storage, the system provides continuous electricity for residential, agricultural, commercial, and industrial projects. It is particularly suitable for remote locations, areas with unstable grid access, and projects seeking to reduce energy costs and carbon emissions.
Typical applications include capsule houses, modular homes, farms, irrigation systems, resorts, eco camps, communication base stations, islands, remote communities, water pumping systems, emergency backup power, and commercial or industrial facilities.
| Standard Capacity Options | |
| System Capacity | Recommended Applications |
| 5kW | Small Cabin / Tiny House |
| 13kW | Capsule House / Vacation Cabin |
| 20kW | Farm / Villa / Irrigation |
| 30kW | Resort / Eco Camp |
| 50kW | Island / Microgrid / Commercial |
