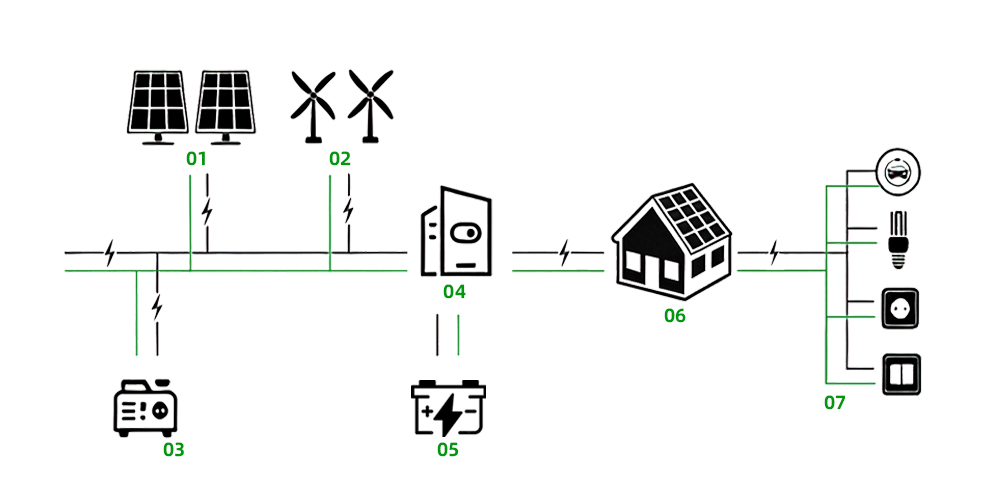

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads

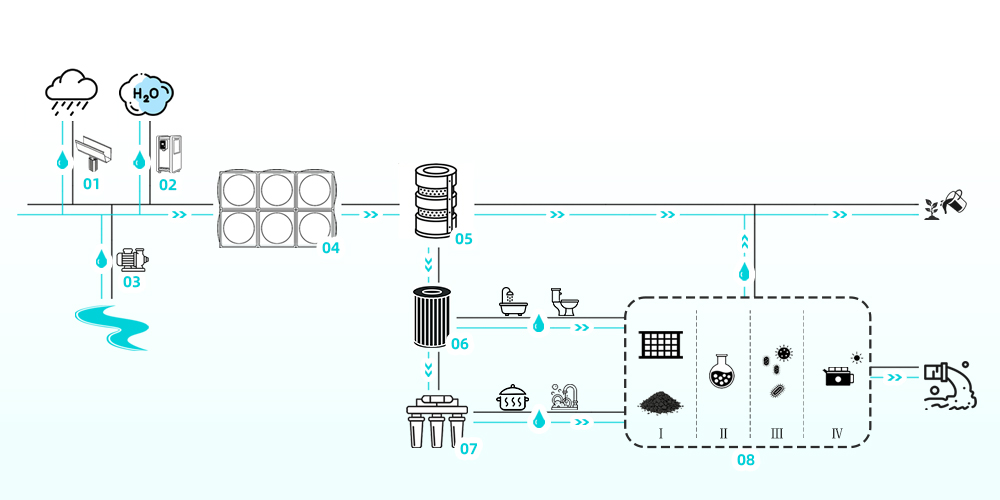

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

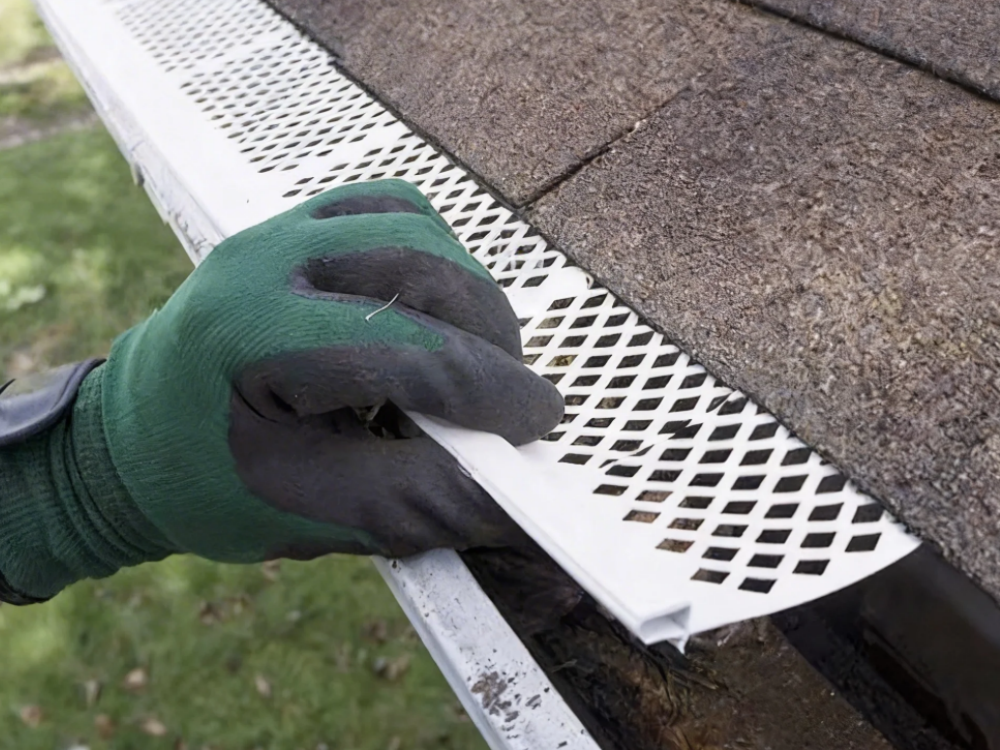

The aluminum gutter system provides durable rainwater collection with excellent corrosion resistance and efficient drainage. Its deep-channel design helps prevent overflow while directing collected rainwater to storage tanks for filtration and reuse.
1.Efficient Rainwater Collection
Collect and direct roof rainwater into storage systems, providing a reliable water source for gardening, cleaning, and daily outdoor use.
2.Sustainable Water Source for Multiple Uses
Collect and store rainwater for filtration and reuse in irrigation, cleaning, and other household applications.
3.Durable Performance in All Weather
Designed for outdoor use with reliable strength and weather resistance, ensuring long-lasting rainwater collection throughout the year.
4.Easy Installation & Maintenance
Simple structure with convenient installation, making it easy for homeowners to build their own rainwater harvesting system
Through the synergistic action of multiple anchor points, robust connections are formed at key locations, significantly enhancing the overall structure's stability and resistance to deformation.
Sealant is applied at all joints to ensure watertight connections between components.

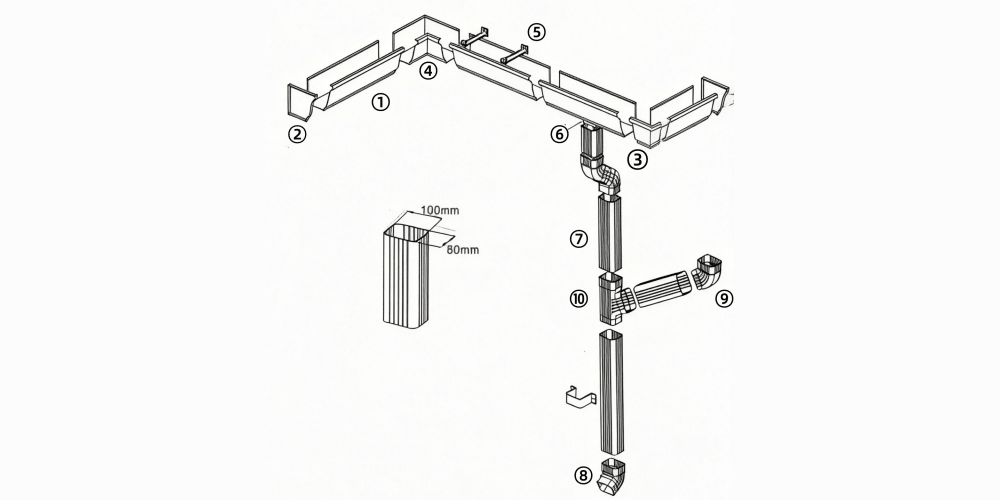

①: Eaves gutter
②: End cap
③: 90°external corner
④: 90°internal corner
⑤: Eaves gutter hook
⑥: Rainwater outlet
⑦: Downspout
⑧: Downspout diverter
⑨: Downspout Deflector
⑩: Sloped Tee

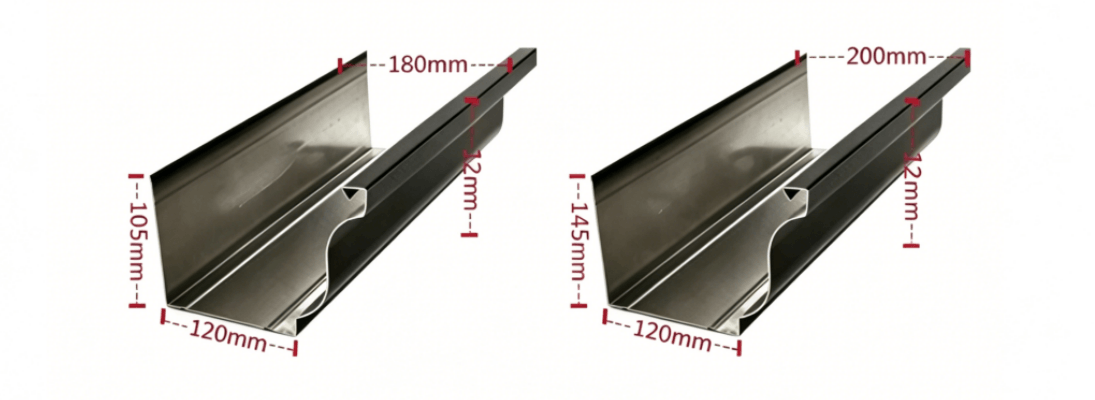

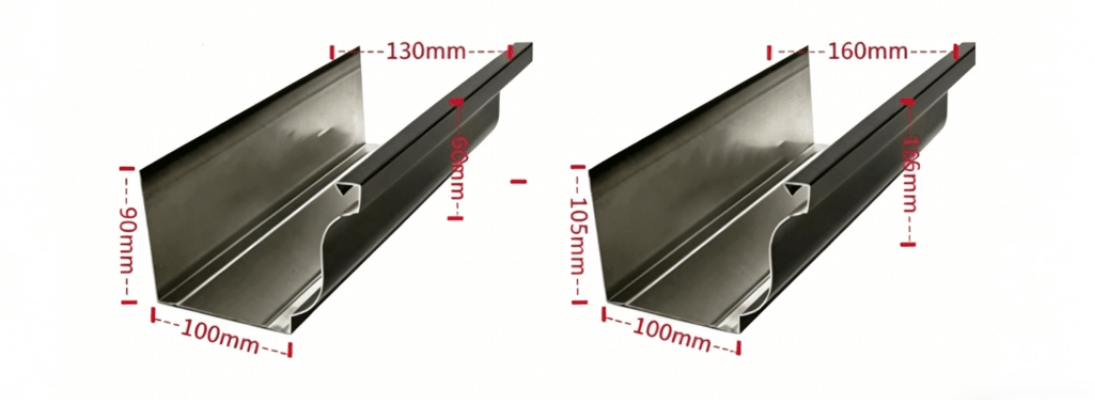

5.5" K-Style Gutter 6" K-Style Gutter
7" K-Style Gutter 8" K-Style Gutter
*Standard thicknesses are 0.7mm and 1.0mm.
Custom thicknesses include 1.2mm, 1.35mm, 1.5mm, and 2.0mm.

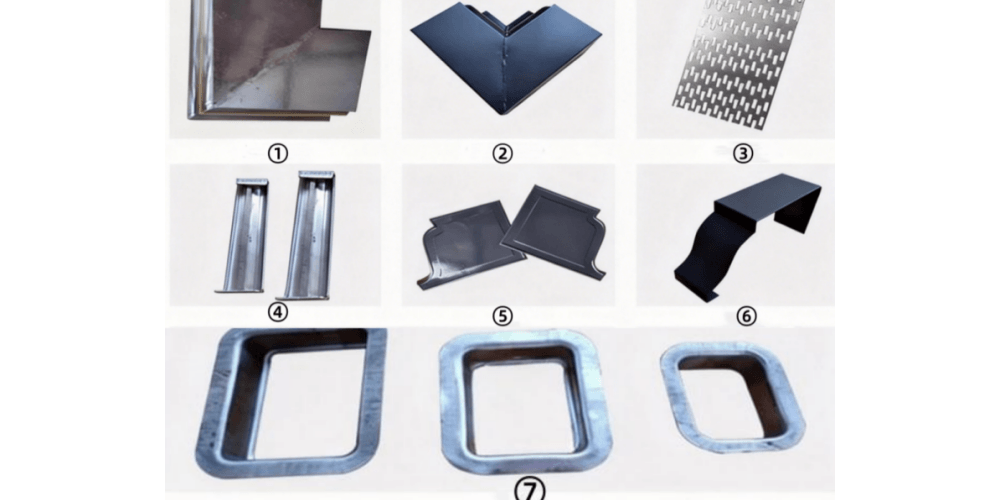

①：90-degree external corner
②：90-degree internal corner
③：Drain cover
④：Hanger
⑤：Sealing cap
⑥：Clip connector
⑦：Drain
