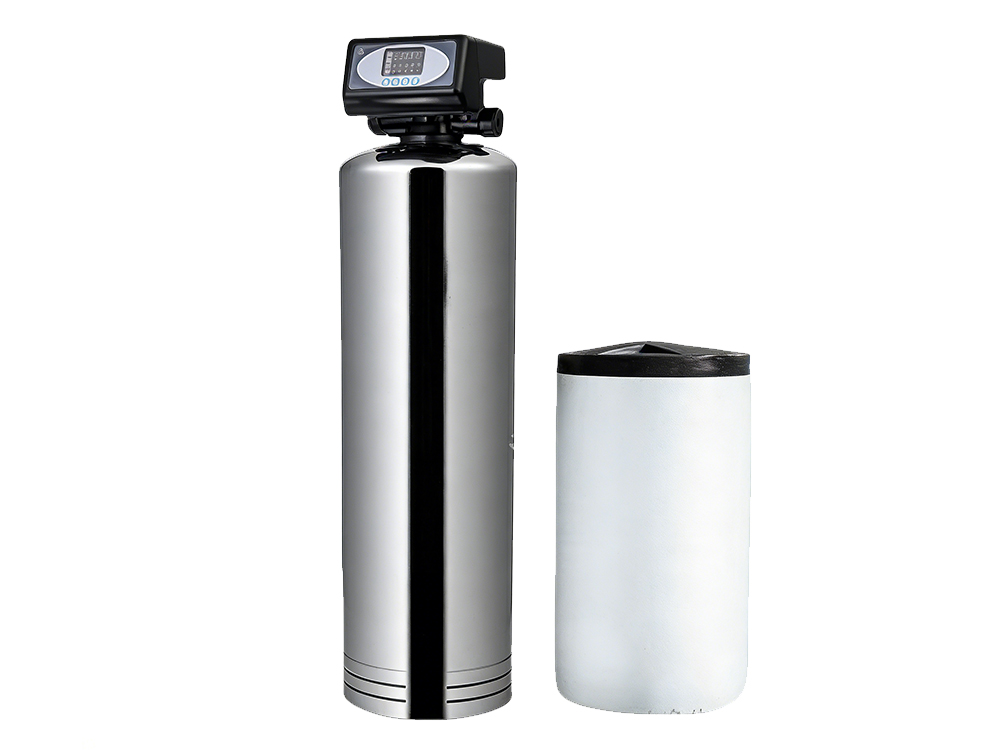

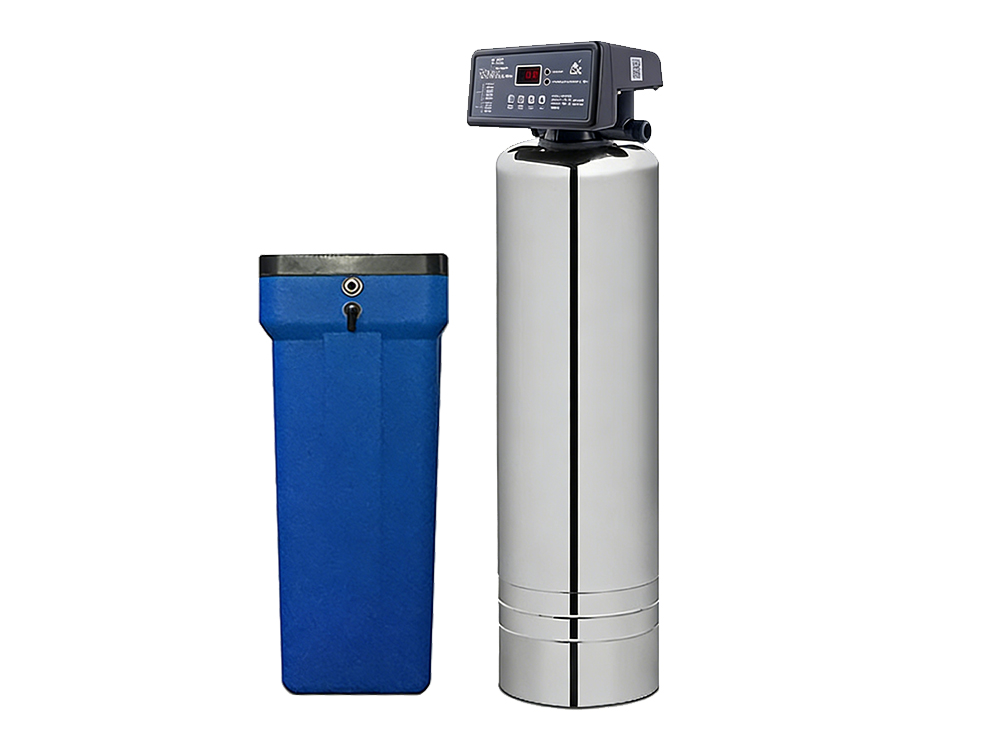

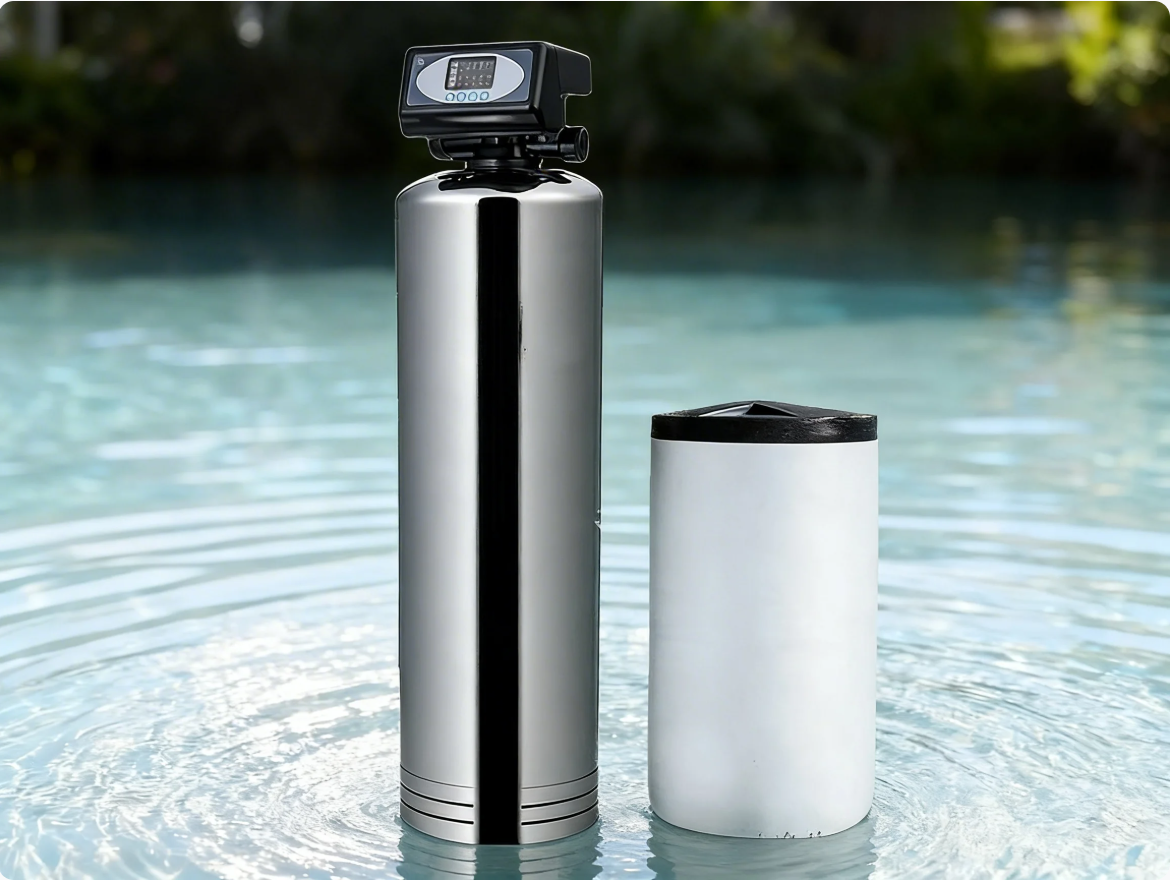

This water softener utilizes advanced ion exchange technology to effectively prevent scale buildup in pipes, water heaters, and household appliances, thereby extending equipment lifespan and enhancing overall operational efficiency. It improves shower comfort while protecting skin and hair, making it ideal for residential settings with fluctuating water demands.

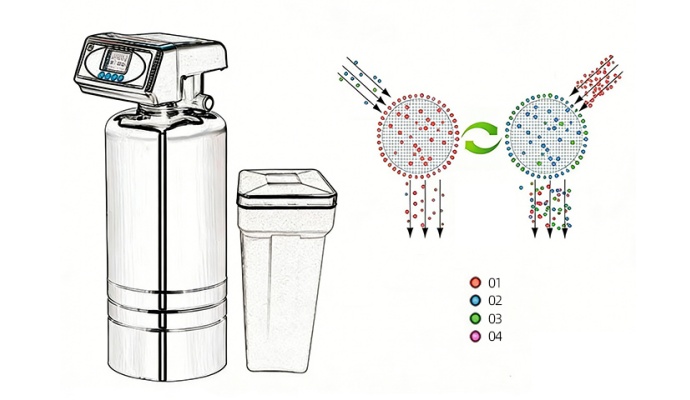

Cationic resin exchange technique replaces calcium and magnesium ions (alkalis) in water with sodium-type ionization
01 Sodium ions
02 Calcium ions
03 Magnesium ions
04 Other cations
Prolong the service life of resin, save salt and water

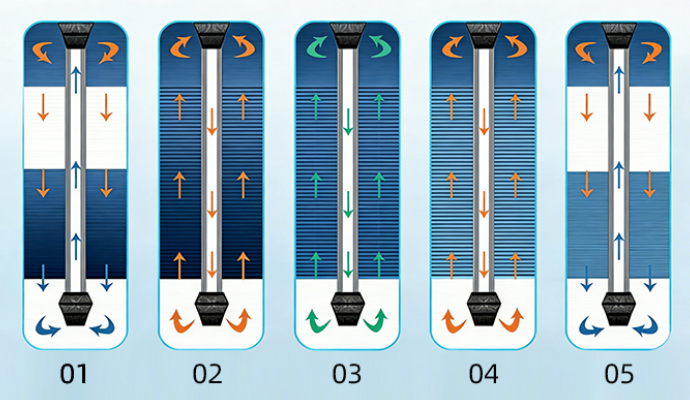

01 Soften
02 Backwash
03 Salt absorption
04 Slow wash
05 Positive wash
| Filter Material | Softening resin |
| Aplicabewater source | Tap water, groundwater |

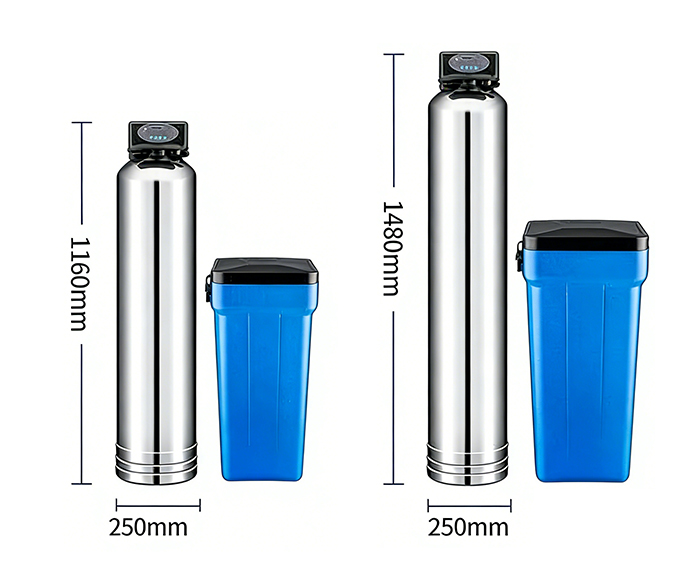

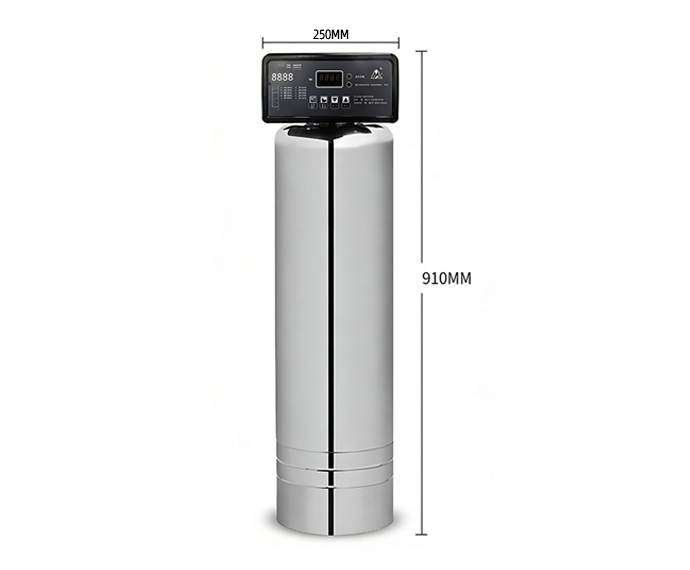

| Product size | 910mm / 1160mm / 1480mm*250mm |
| Waterinket pressure | 0.1－0.3MPA |
| Control mode | Automatic |
| Clean Water Flow | 2000 / 3000 / 4000 L/H |
| Interface Size | 6 points |
| Material | 304 stainless steel |
| Filter Material Replacement | Check the salt bucket regularly to refill the softening salt |

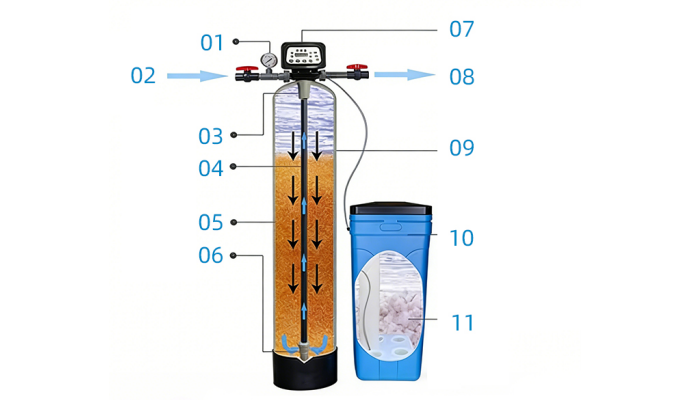

01 Pressure gauge
02 Raw water entry
03 Put on the water dispenser
04 Center tube
05 Resin filter material
06 Lower water dispenser
07 Fully automatic softening valve
08 Soft water effluent
09 Salt-sucking tube
10 Salt box
11 Water softening salt
Manual Plug
01 Water inlet
02 Water outlet
03 Drain

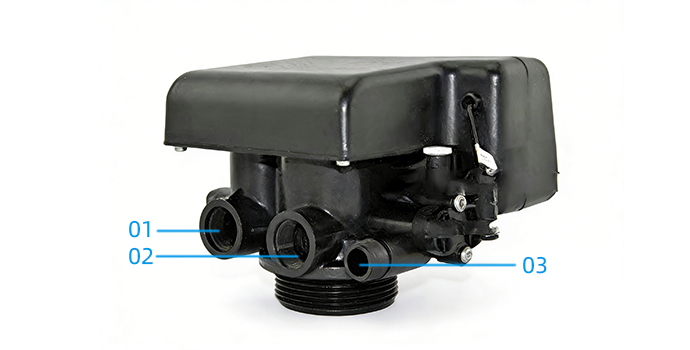

Auto Plug
01 Water inlet
02 Water outlet
03 Drain

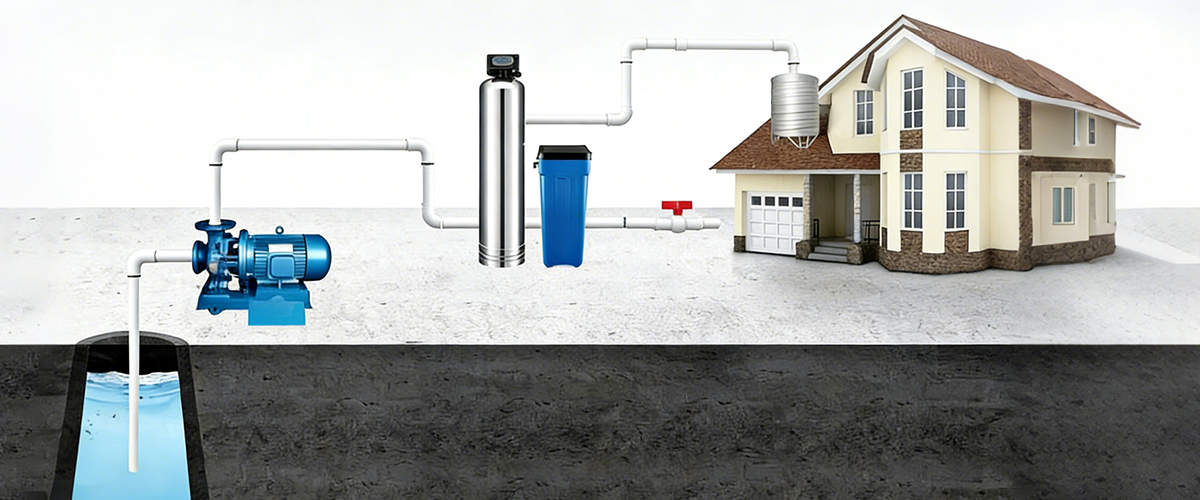

Typically installed in whole-house water treatment systems, hotels, homestays, laundromats, greenhouse irrigation systems, etc.
