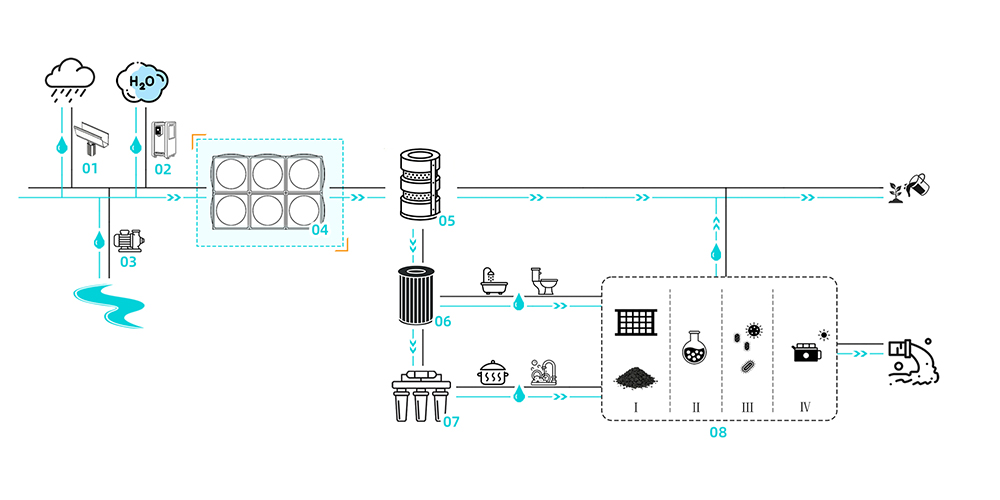

01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

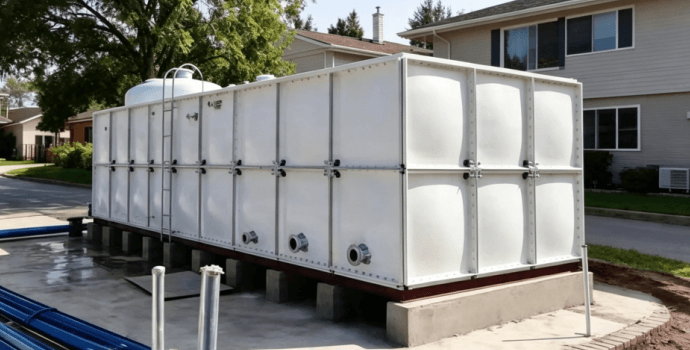

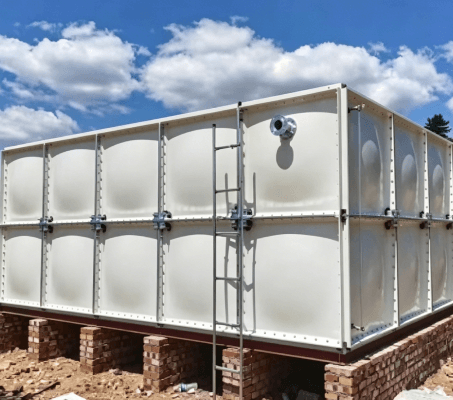

Fiberglass (GRP / FRP SMC) Water Storage Tank
Made from high-quality fiberglass and resin, featuring excellent sealing, a stable structure, and leak-proof performance. Lightweight, corrosion-resistant, durable, and easy to clean, with long service life. All components are assembled on-site for flexible installation.
Ideal for water storage applications in residential, commercial, agricultural, and industrial sectors, including prefabricated villas, container homes, space pods, and houseboats.
Effective sealing
The product can completely block out sunlight, boasts good sealing performance, prevents algae growth, and maintains clean water quality.
Easy to assemble
Easy to assemble, with an attractive appearance, it can be assembled into different tonnages according to user needs.
Strong pressure bearing capacity
High strength stamping plates and evenly distributed stainless steel reinforcement inside the box ensure even and reasonable pressure bearing of the box.
| Material | Fiberglass/SMC |
| Dimensions | 2×1m, 1.5×1m, 1×1m, 1×0.5m, 0.5×0.5m |
| Panel Shape | Spherical |
| Thickness | 6-20 mm |
| Note | Thickness tolerance: ±0.2 mm |
| Volume | 0.125–5000 m³ |
| Color | White, blue, etc. |
| SMC Tank Physical and Chemical Properties | Compressive Strength (MPa) ：≥ 60 |
| Flexural Strength (MPa)： ≥ 100 | |
| Flexural Modulus (GPa)： ≥ 7.0 | |
| Pap Hardness ：≥ 60 | |
| Water Absorption Rate： ≤ 1.0% | |
| Glass Fiber Content ：≥ 25% | |
| Leakage | No leakage when filled with water |
| Water-Filled Deformation | After filling with water, maximum wall deformation does not exceed 1.0%. Maximum deformation at the center height of the tank bottom does not exceed 10 mm. |

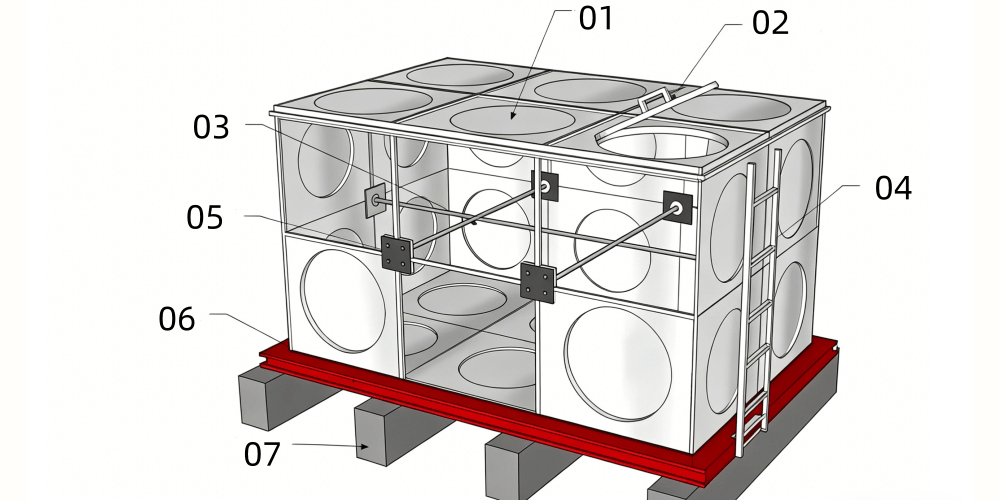

① Panel
② Manhole
③ Tie Rod
④ Ladder
⑤ Lacing Board

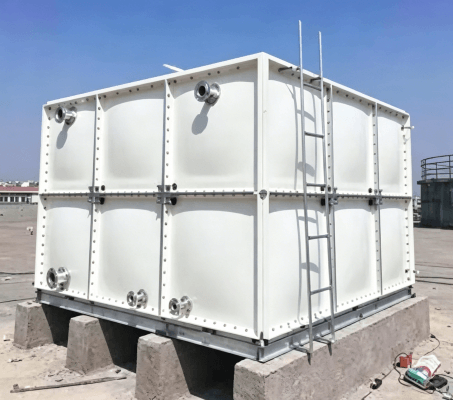

⑥ C-Channel Base
⑦ Concrete Foundation

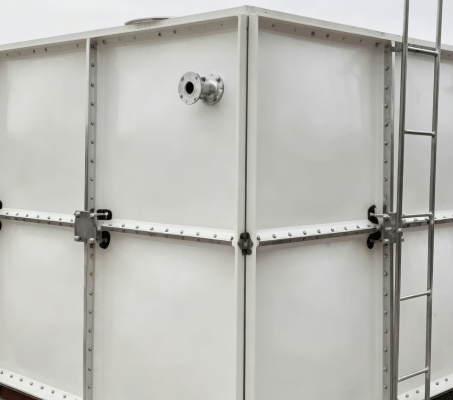

SMC water tanks consist of four components:
(1) Panels (bottom panel, side panels, roof panel, and manhole);

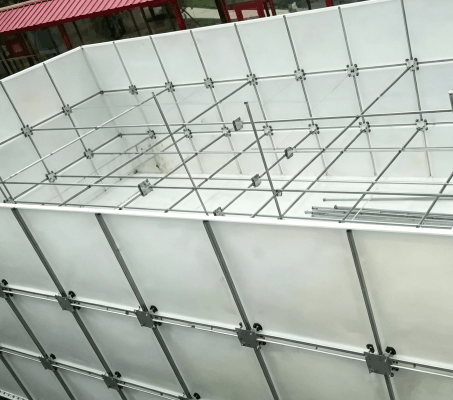

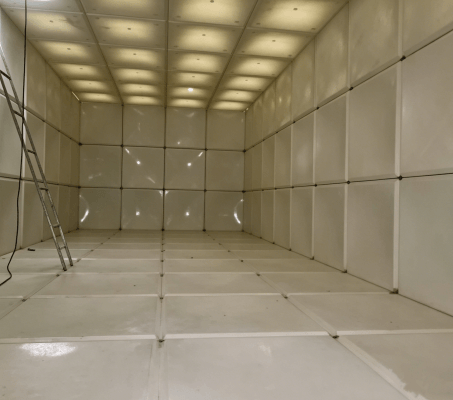

(2) Internal components (internal ladder, tie rods, brackets, flanges, and rubber seals);
(3) External components (external ladder, angle iron, steel plates, bolts, and nuts);
(4) U-channel steel base (surface treatment options include painting, hot-dip galvanizing, or stainless steel).

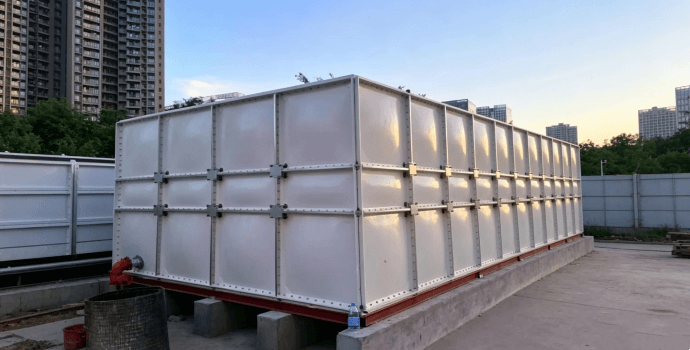

Fiberglass-reinforced plastic (FRP/GRP) water tanks are widely used in a variety of settings:

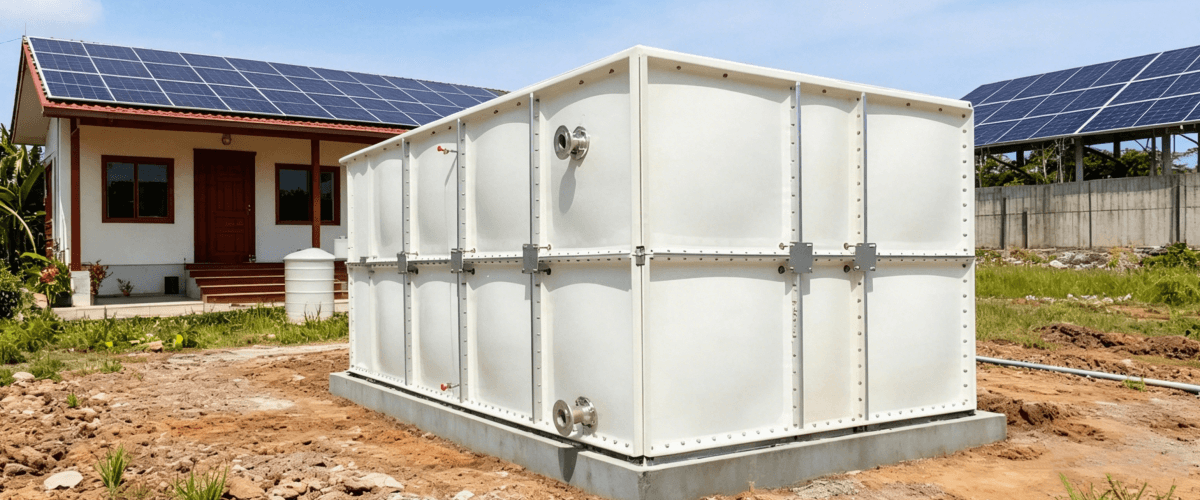

They are particularly suitable for container homes, eco-resorts, off-grid residences, and island projects, serving as a key component of independent water supply systems and offering ease of transport and on-site assembly. They are also extensively used in homes, schools, farms, and other settings.
