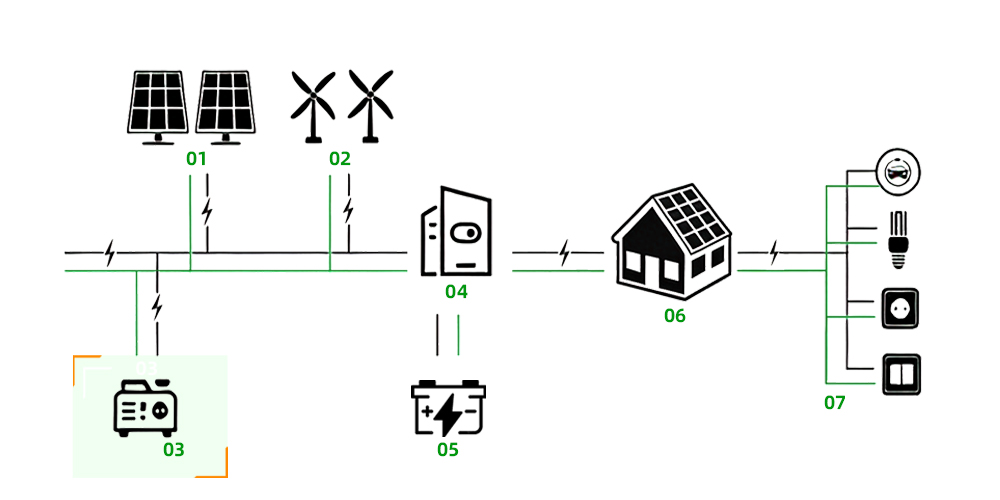

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads
01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit

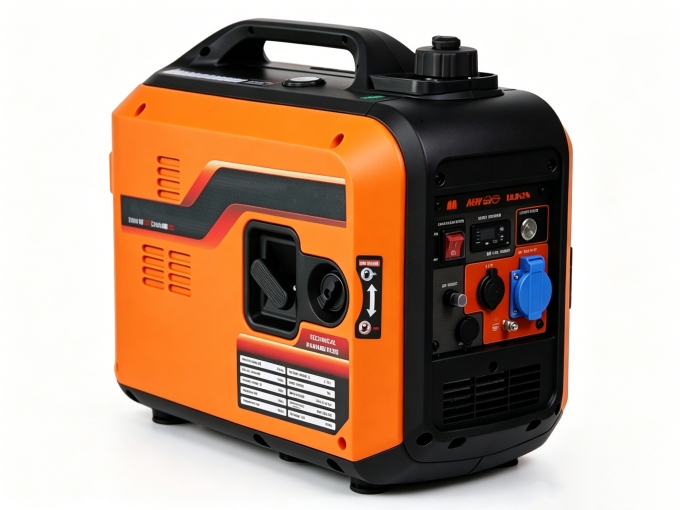

This portable silent gasoline generator is designed for reliable, low-noise power supply in home, outdoor, and backup applications. Featuring compact structure, easy operation, and stable output, it is an ideal solution for everyday power needs.
1.Ultra Quiet Operation
Operates at only around 55dB at 7 meters, making it ideal for quiet environments like home and camping.
2.Lightweight & Portable
Weighing only 23 kg, it is easy for one person to carry and transport.
3.Stable Power Output
Delivers reliable and consistent power for daily appliances and outdoor equipment.
4.Fuel Efficient
High-efficiency engine ensures lower fuel consumption and longer running time.
| Rated Power | 1.0KW | 1.8KW | 2.2KW | 2.6KW | 3.5KW | 5KW | 6.2KW | 8.2KW |
| Maximum Power | 1.2KW | 2.0KW | 2.5KW | 3.0KW | 3.8KW | 5.5KW | 6.5KW | 8.5KW |
| Rated Voltage (Optional) | 230V | 230V | 230V | 230V | 230V | 230V | 230V | 230V |
| Rated Current | 4.5A | 7.8A | 9.6A | 11.3A | 15.2A | 21.7A | 27A | 35.7A |
| Engine Model | 53CC | 79CC | 98CC | 120CC | 160CC | 223CC | 298CC | 457CC |
| Frequency (Optional) | 50HZ | 50HZ | 50HZ | 50HZ | 50HZ | 50HZ | 50HZ | 50HZ |
| Fuel Tank Capacity (L) | 2.1L | 4.2L | 4.2L | 7L | 6.5L | 12L | 15L | 30L |
| Starting Method | Manual | Manual/Electric/Remote Control | ||||||
| Product Dimensions | 450*240*380MM | 510*280*455MM | 510*280*455MM | 525*310*490MM | 535*298*478MM | 636*415*565MM | 685*530*550MM | 810*690*780MM |
| Gross Weight (KG) | 17KG | 20KG | 23KG | 24KG | 24KG | 47KG | 67KG | 67KG |

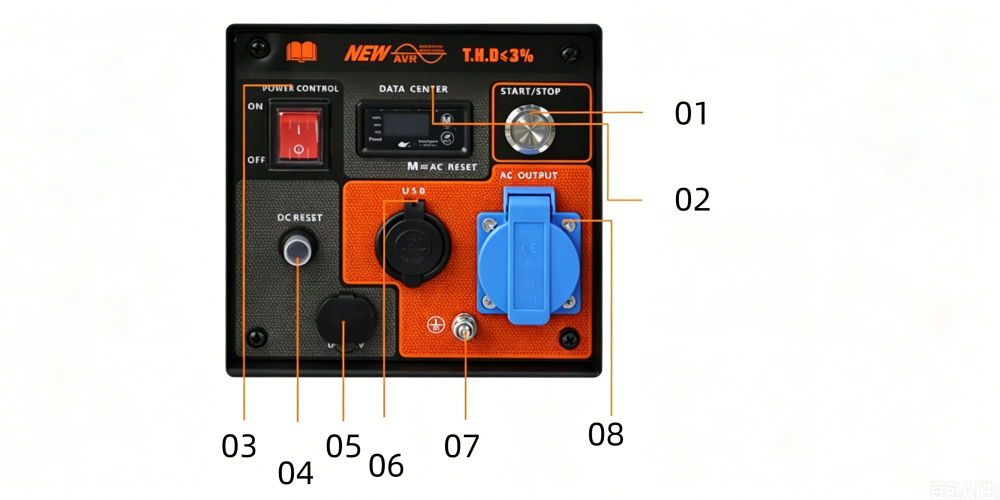

01 Start/Stop
02 Multi-function Digital Display Instrument
Integrated display of frequency and voltage with a built-in timing function for real-time monitoring and convenient operation.
03 Power control
04 DC reset
05 12V DC
06 USB
07 Terminals
08 AC Output

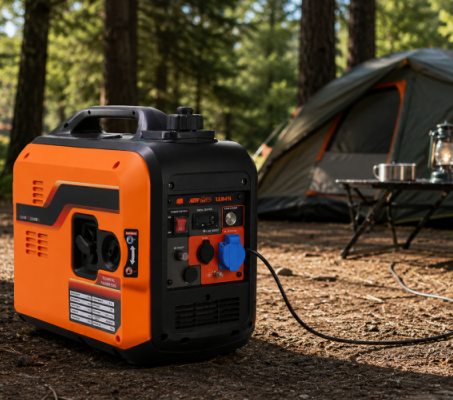

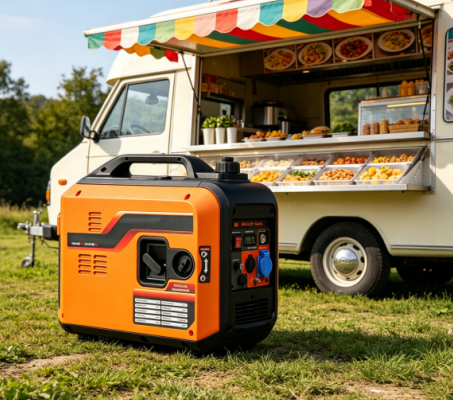

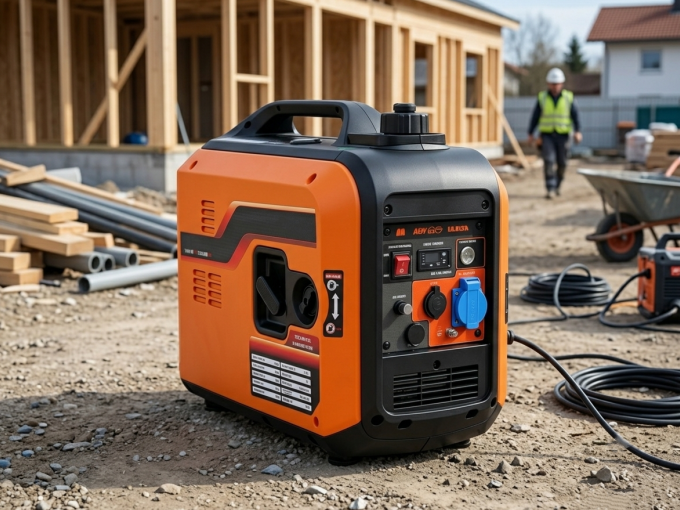

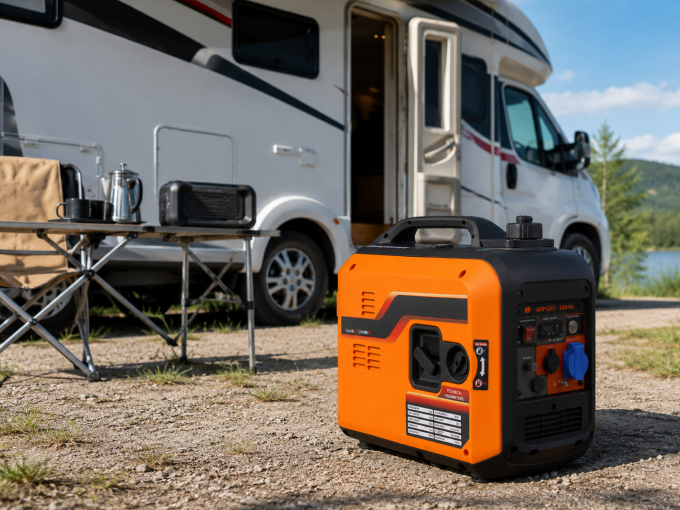

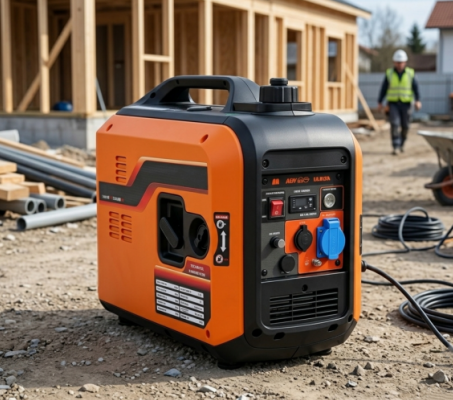

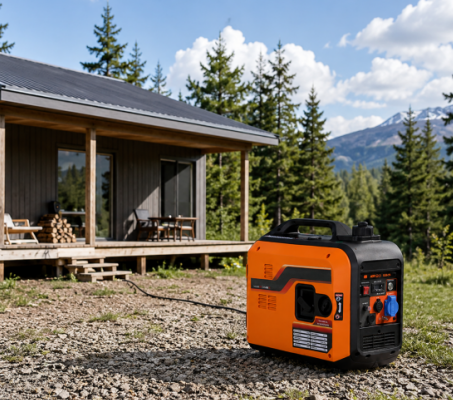

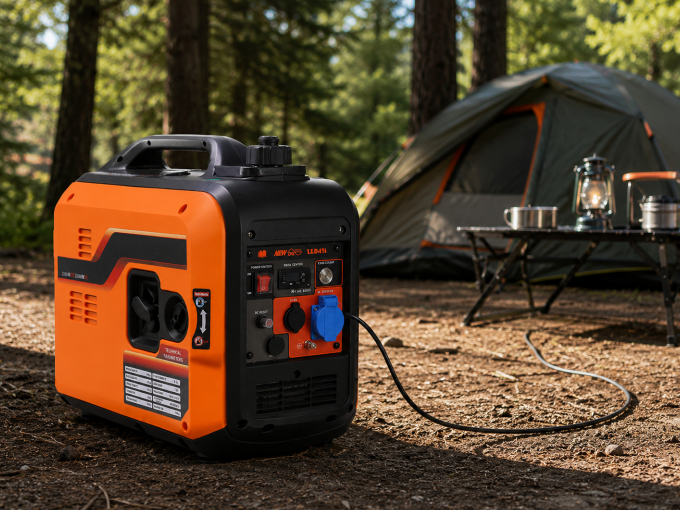

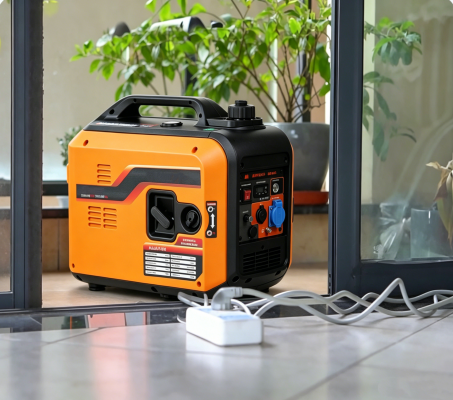

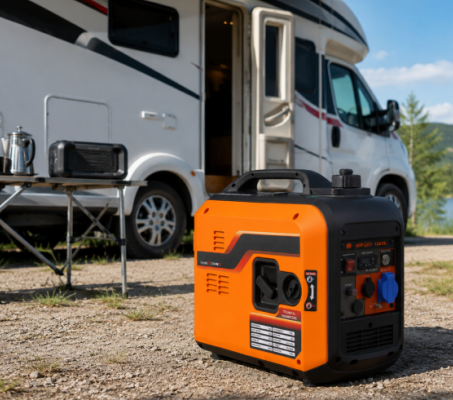

Ideal for off-grid living, camping, RV travel, outdoor events, construction sites, street vending, and emergency home backup power during outages.
1.Will it be noisy?
This product features multi-layer noise reduction, with a noise level of approximately 55 dB measured at a distance of 7 meters.

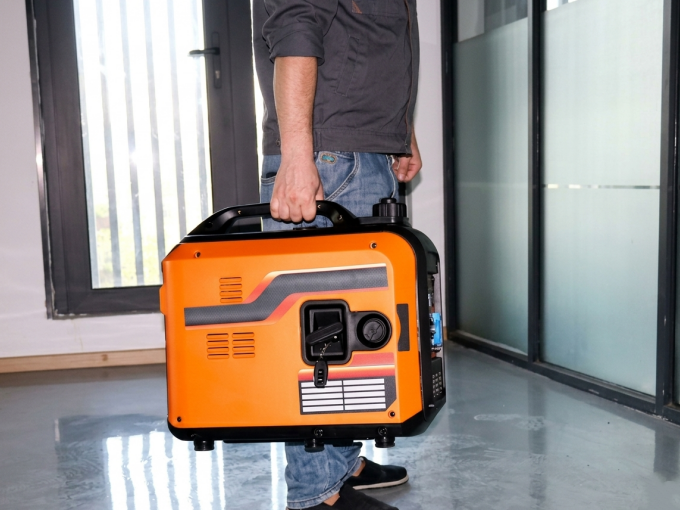

2.Is this generator easy to carry?

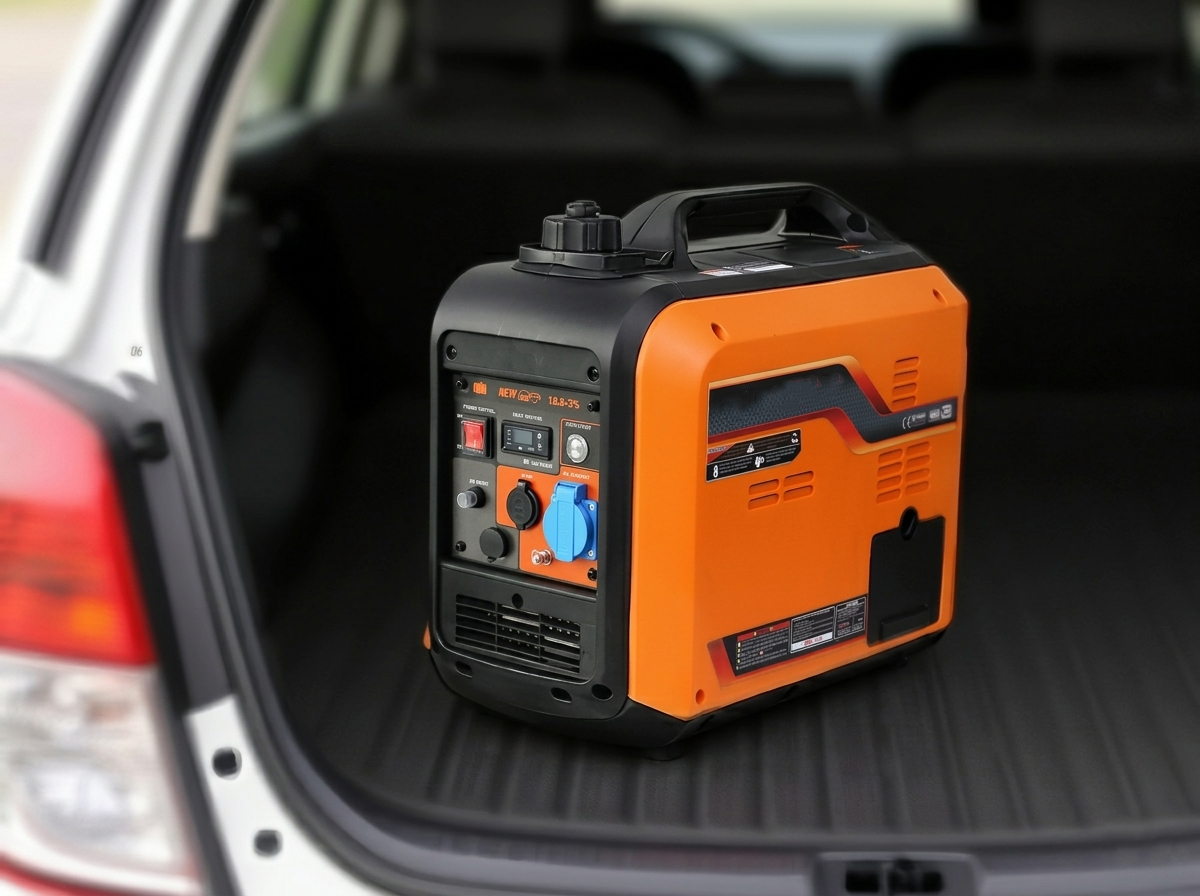

The 2.2KW model weighs only 23 kg, making it easy to carry by hand. Its compact size allows it to fit easily into a car trunk.
