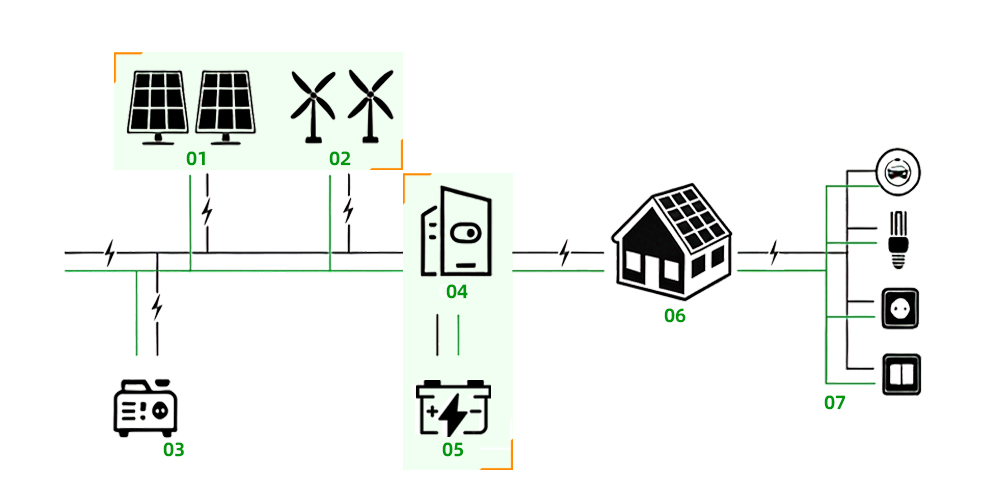

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads
01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit
The 5kW Hybrid Energy Kit is a standardized renewable energy solution designed for small buildings and light-duty applications. By combining wind and solar power generation as a supplementary energy source, the system helps reduce grid electricity consumption, improve energy efficiency, and lower long-term operating costs. Ideal for tiny houses, glamping sites, security cabins, small capsule houses, modular homes, container buildings, and other small-scale renewable energy applications.
1. Standardized 5kW Configuration;
2. Wind & Solar Hybrid Generation;
3. Reduce Grid Electricity Costs;
4. Easy Installation & Expansion;
5. WiFi Monitoring Available;
6. Low Maintenance Requirements.
| Item | Specification |
| System Capacity | 5kW |
| Application Type | On-Grid / Off-Grid / Hybrid Flexible |
| Wind Turbine Power | 2kW |
| Solar Panel Capacity | 3kW |
| Controller | Hybrid Controller |
| Inverter | 5kW Grid-Tie Inverter |
| Monitoring | WiFi Optional |
| Output Frequency | 50Hz / 60Hz |
| Equipment | Quantity |
| Air Conditioner (1–1.5HP) | 1 Unit |
| Refrigerator | 1–2 Units |
| LED Lights | 10–20 Units |
| Television | 1 Unit |
| Laptop | 2–4 Units |
| Water Pump | 1 Unit |
| Router & Network Devices | Multiple Units |
Actual operating time depends on local wind conditions, solar radiation, battery capacity, and load demand.
The 5kW Hybrid Energy Kit integrates power generation, energy storage, intelligent control, and power conversion into a complete renewable energy solution for small-scale applications.
1) 2kW Permanent Magnet Wind Turbine
Designed for low to medium wind conditions, this turbine uses a permanent magnet generator and optimized blades for stable, efficient, long-term power output.
· Rated Power: 2kW
· Low Start-Up Wind Speed
· Durable Fiberglass Blades
· Low Maintenance Requirements
2) 3kW Monocrystalline Solar Panel System
3kW solar system using high-efficiency monocrystalline panels for stable, efficient energy output and long-term outdoor durability.
· Solar Capacity: 3kW
· High-Efficiency Monocrystalline Cells
· Excellent Weather Resistance
· Long Service Life
3) Optional Battery Storage System
10kWh lithium battery stores excess renewable energy and provides backup power during low generation, featuring compact design and long cycle life for reliable operation.
· Battery Capacity: 10kWh
· Lithium Battery Technology
· Long Cycle Life
· Reliable Backup Power

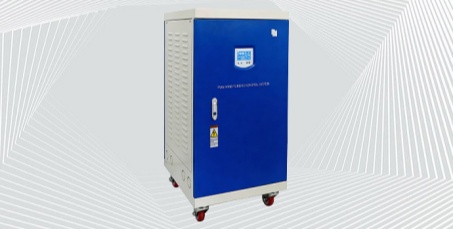

4) Hybrid MPPT Controller
Intelligently manages energy generation, battery charging, and load distribution to maximize efficiency and protect system components.
· MPPT Charging Technology
· Intelligent Energy Management
· Multiple Protection Functions
· Stable System Operation
5) 5kW Pure Sine Wave Inverter
Converts DC power into stable AC electricity for residential and light commercial use, with pure sine wave output for sensitive equipment compatibility.
· Rated Power: 5kW
· Pure Sine Wave Output
· High Conversion Efficiency
· Optional WiFi Monitoring
6) Wind Turbine Tower & Solar Mounting Structure
Includes a wind turbine tower and solar panel mounting system designed for reliable outdoor installation, with flexible options based on site conditions.
· Wind Turbine Tower Included
· Solar Mounting Structure Included
· Corrosion Resistant Materials
· Suitable for Various Terrains

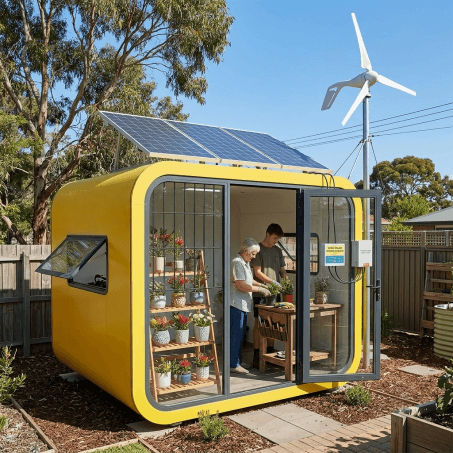

The 5kW Hybrid Energy Kit is designed for small-scale renewable energy applications where reducing grid electricity consumption and improving energy efficiency are priorities. By combining wind and solar power generation, the system provides a practical and sustainable energy solution for tiny houses, capsule houses, container buildings, security cabins, glamping sites, modular homes, and small site offices. It is an ideal choice for projects seeking to integrate renewable energy while maintaining reliable access to utility power.

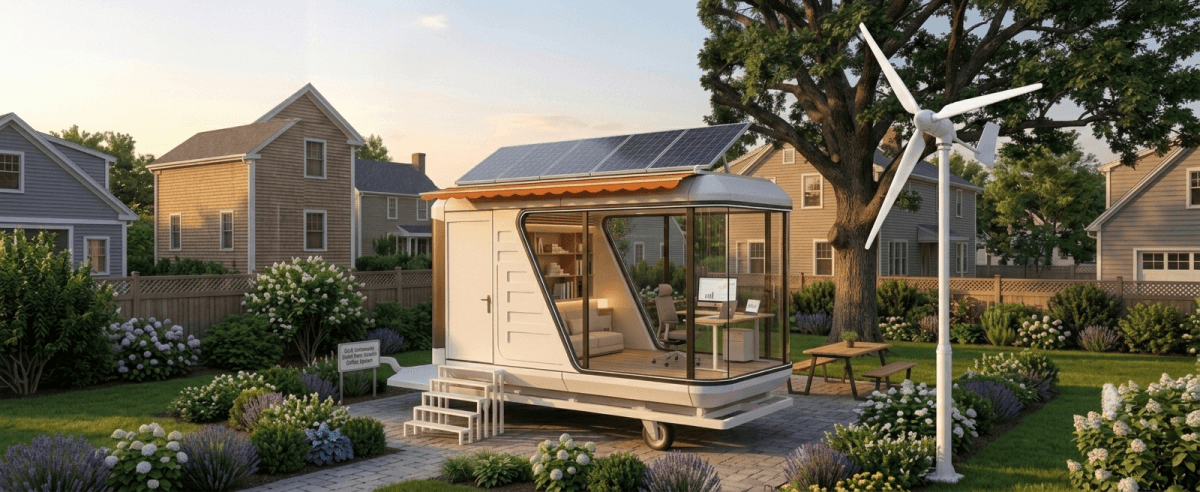

Tiny House

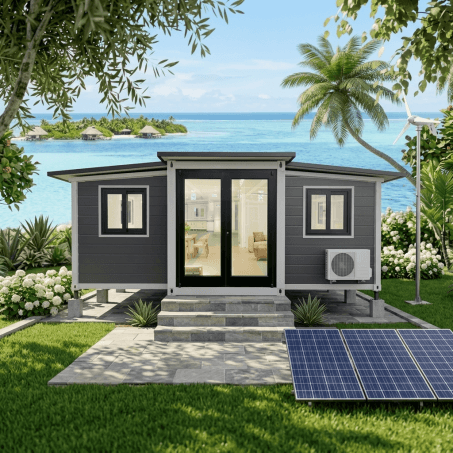

Container House

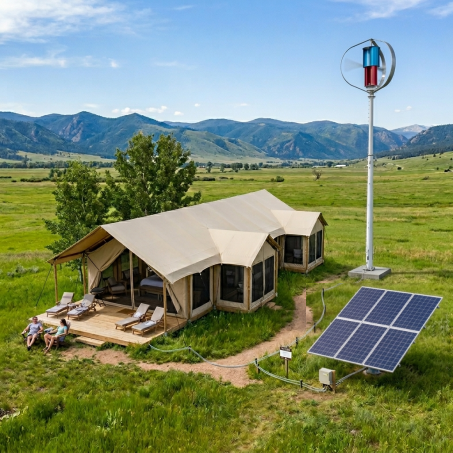

Glamping Tent
