The VH-100T Distributed Vertical Axis Wind Turbine “Wind Tree” offers scalable power from 1kW to 100kW and features a modular design integrating multiple low-wind-speed vertical axis turbines. Each layer is mounted on a triangular tower structure, capturing wind from multiple directions for maximum energy efficiency. The base uses either screw anchors or concrete footings, ensuring a stable and visually appealing structure while optimizing wind utilization. The system can be flexibly expanded and combined to meet project-specific needs, making it ideal for off-grid islands, remote areas, telecom towers, industrial parks, and other off-grid applications.
1. Low Wind Speed Start
Permanent magnet generator enables power generation at low wind speeds.
2. Omnidirectional Wind Capture
360° wind acceptance without yaw control.
3. Modular Expansion
Scalable capacity through multi-layer and multi-tower configurations.
4. Stable Power Output
Multiple turbines operate together for smoother energy generation.
5. Low Noise Operation
Optimized blade design minimizes vibration and noise.
6. Intelligent Safety Lock
Automatic or manual locking for high-wind protection.
7. Hybrid Energy Ready
Compatible with solar panels and battery storage systems.
| Item | Specification |
| Model | VH-100T |
| Rated Power (Single Unit) | 100W |
| System Capacity | 1kW–100kW |
| Start-up Wind Speed | 2.5 m/s |
| Rated Wind Speed | 12 m/s |
| Generator Type | Permanent Magnet Brushless Generator |
| Protection Class | IP65 |
| Blade Material | High Strength Aluminum Alloy |
| Tower Material | Galvanized Steel |
| Unit Weight | 3 kg |
| Control Mode | Auto / Manual Lock |
| Working Environment | Outdoor All-weather |
| Installation Type | Modular Structure |

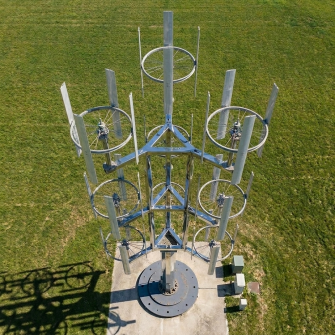

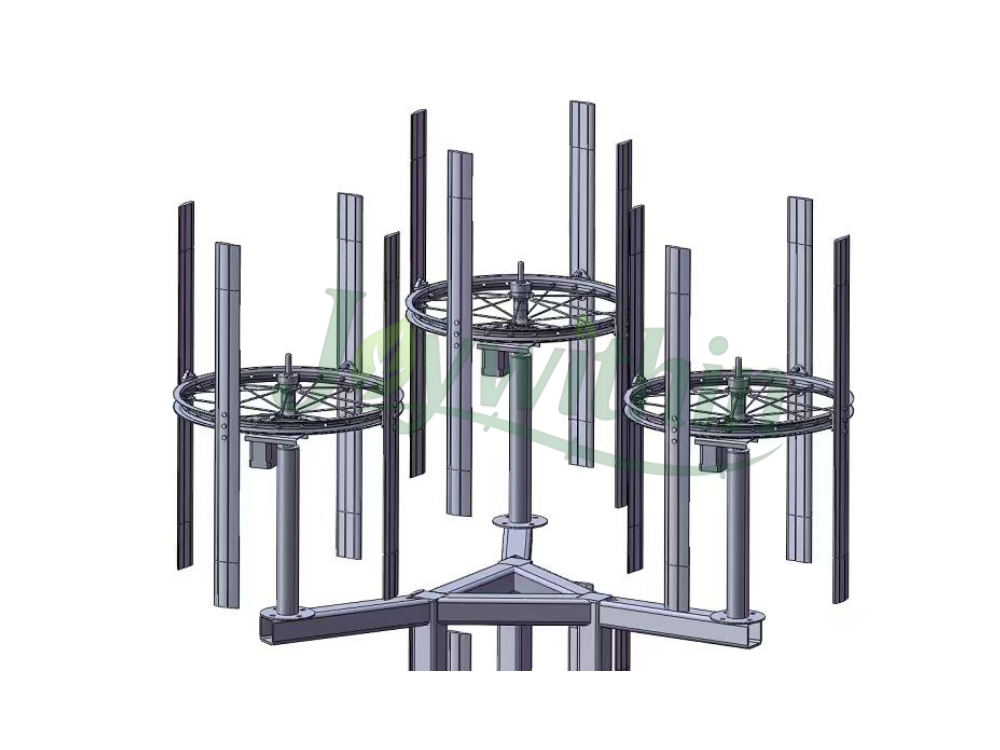

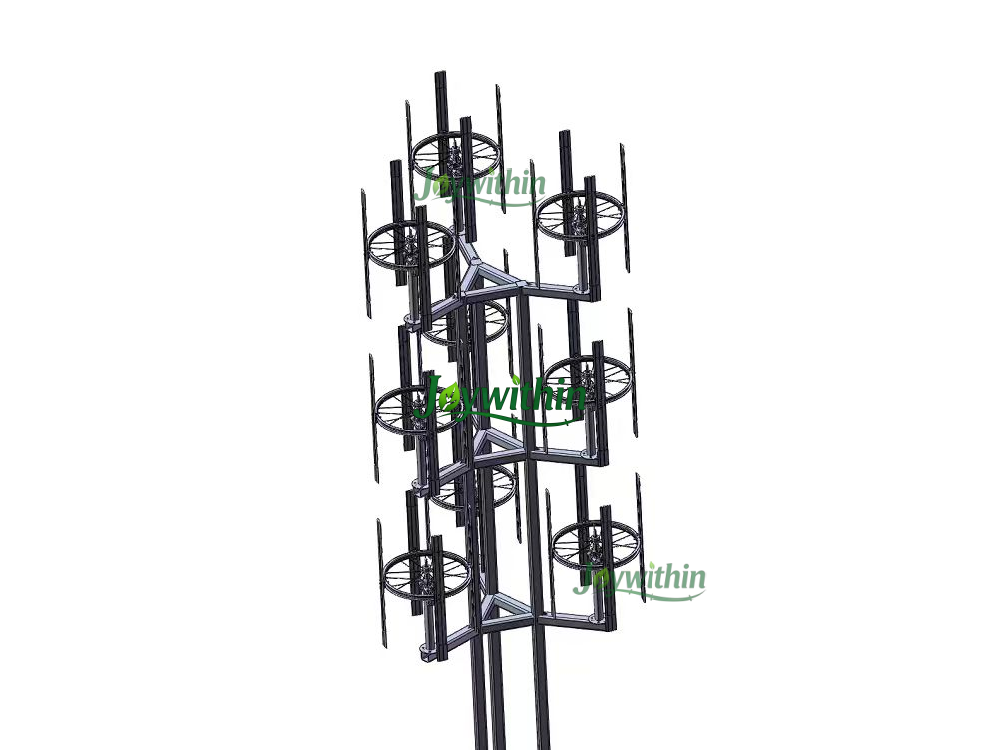

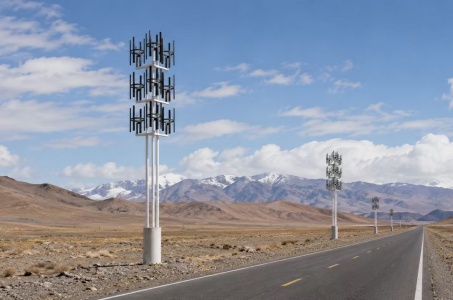

Triangular Tower Installation
Multi-layer installation using a triangular steel tower structure to maximize energy output per footprint.
1. High power density
2. Small footprint
3. Easy expansion
Ideal for telecom and industrial applications

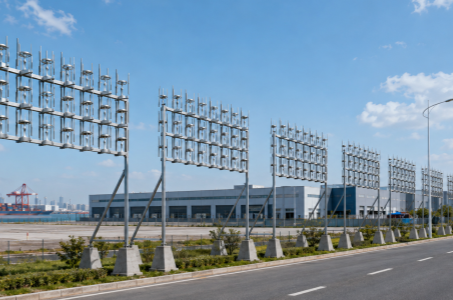

Wind Wall Installation
Multiple turbines are arranged in a wind wall configuration to form a large wind energy harvesting surface.
1. Suitable for building facades
2. Decorative and functional
3. Easy maintenance

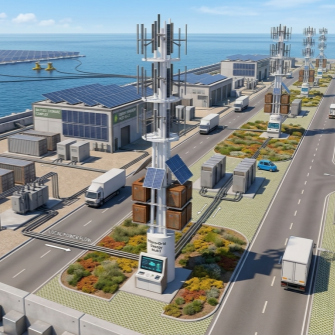

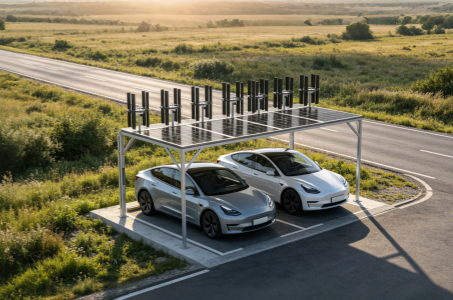

Solar Hybrid Installation
Solar panels are mounted on the top structure to create a hybrid wind-solar energy system.
1. Higher energy availability
2. Reduced battery dependency
3. Ideal for Off-grid island power supply
4. Ideal for outdoor EV charging stations
Standard Configurations
| System Capacity | Approx. Number of Turbines | Typical Applications |
| 1 kW | 10 Units | Small off-grid homes, boats, research stations |
| 5 kW | 50 Units | Farms, small workshops |
| 10 kW | 100 Units | Telecom stations, remote communities |
| 50 kW | 500 Units | Industrial parks, islands |
| 100 kW | 1000 Units | Microgrid and utility-scale projects |
Customization Options
| Item | Description |
| Tower Height | Customized according to site conditions |
| Wind Wall Design | Customized layout |
| Hybrid System | Wind + Solar + Battery |
| OEM/ODM | Available |
The VH-100T modular wind power system is ideal for urban buildings, industrial parks, communication base station, islands, farms, remote communities, research facilities, outdoor EV charging stations and off-grid microgrid projects. Its scalable architecture and low wind speed performance make it a practical renewable energy solution where conventional large wind turbines are unsuitable. The system can also be integrated with solar panels, battery storage, and backup generators to ensure reliable 24/7 power supply.

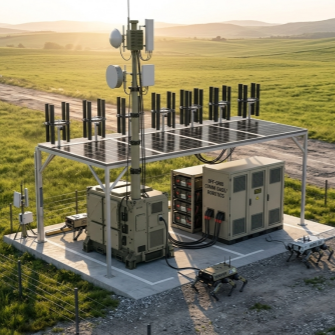

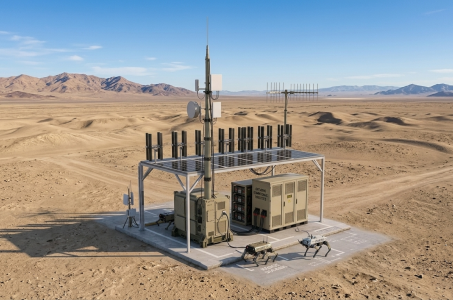

Communication base station

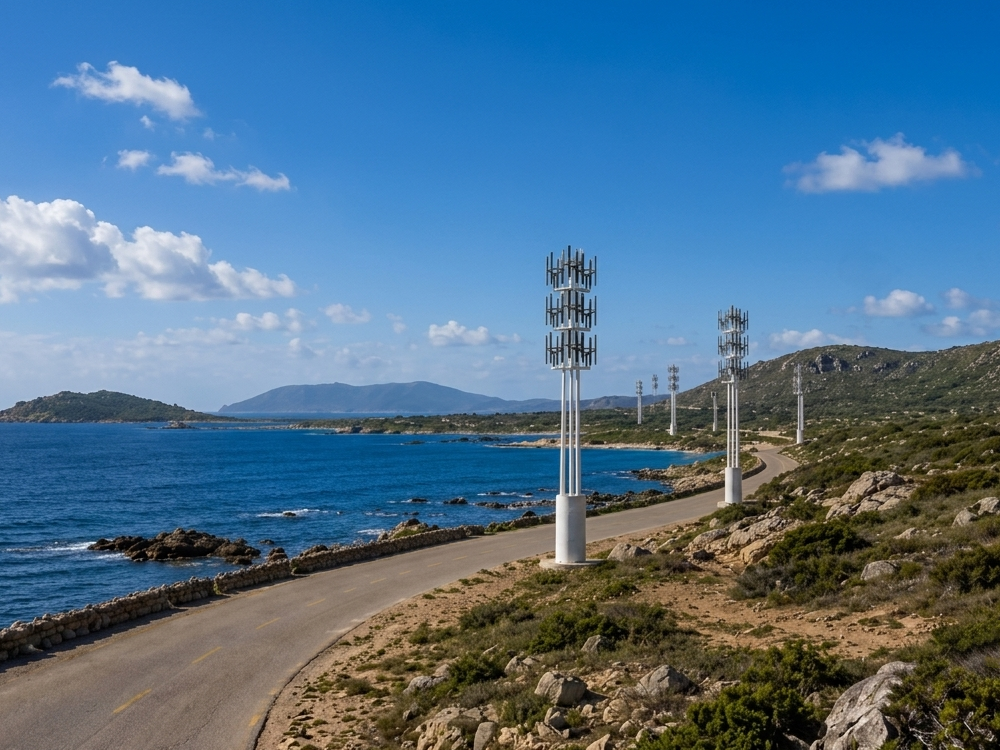

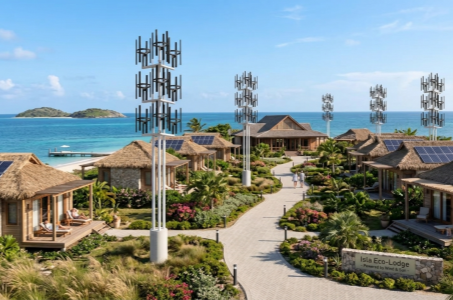

Island

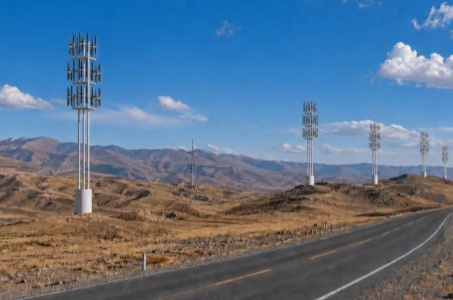

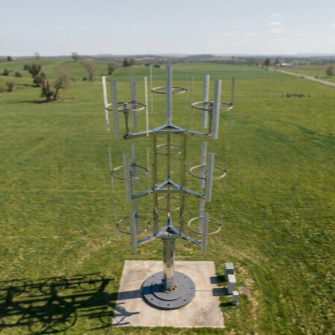

Off-grid project
