The 13kW Off-Grid Hybrid Energy Kit is a complete renewable energy system designed for projects requiring reliable independent power generation. By integrating a 5kW wind turbine, 8kW solar array, 30kWh lithium battery storage system, and intelligent inverter-controller technology, the system delivers stable electricity day and night while reducing dependence on diesel generators and utility grids. It is particularly suitable for capsule houses, vacation cabins, modular homes, farms, eco camps, and other off-grid applications.
1. Complete Off-Grid Power Solution;
2. Day & Night Renewable Energy Supply;
3. Large-Capacity 30kWh Battery Storage;
4. Reduced Diesel Generator Dependence;
5. Intelligent Energy Management;
6. One-Stop Energy, Housing and Water Solutions;
7. Easy Expansion and Remote Monitoring.
| Item | Specification |
| System Capacity | 13kW |
| Solar Capacity | 8kW |
| Solar Panels | 585W × 14 pcs |
| Wind Turbine | 5kW |
| Battery Storage | 30kWh |
| Battery Voltage | 51.2V |
| Battery Capacity | 180Ah × Multiple Modules |
| Inverter Controller | 8300W All-in-One Inverter |
| Output Voltage | 220V |
| Frequency | 50Hz |
| Monitoring | WiFi Optional |
| Application Type | Off-Grid / Hybrid |
The 13kW system is designed to support medium-sized residential and commercial loads.
| Equipment | Typical Quantity |
| Air Conditioner (1-1.5HP) | 2-4 Units |
| Refrigerator | 2-3 Units |
| Television | 2 Units |
| LED Lights | 20-40 Units |
| Laptop | 5-10 Units |
| Water Pump | 1-2 Units |
| Washing Machine | 1 Unit |
| Microwave Oven | 1 Unit |
| Electric Kettle | 1 Unit |
| Small Kitchen Appliances | Multiple Units |
Actual operating time depends on local wind conditions, solar radiation, battery capacity, and load demand.

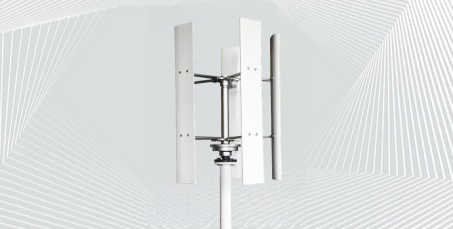

1) 5kW Low-Speed Permanent Magnet Wind Turbine
Provides stable power generation under low and medium wind conditions.
· Rated Power: 5kW
· Start-Up Wind Speed: 2.5m/s
· Fiberglass Blades
· Permanent Magnet Generator

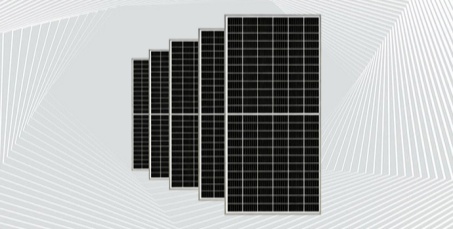

2) 8kW Solar Power System
Composed of fourteen 585W high-efficiency monocrystalline solar panels.
· Total Capacity: 8kW
· 585W x 14 Panels
· High Conversion Efficiency
· Long Service Life

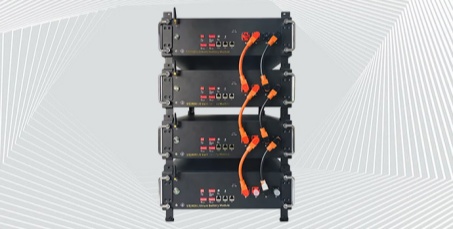

3) 30kWh Lithium Battery Storage System
Stores renewable energy for continuous day and night power supply.
· Storage Capacity: 30kWh
· Battery Voltage: 51.2V
· Stackable Design
· 3-year Warranty

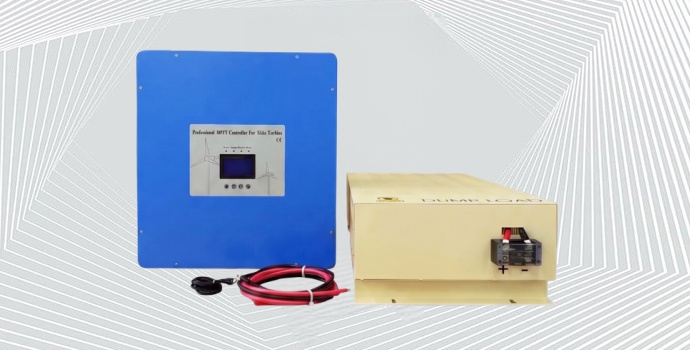

4) 5kW MPPT Wind Turbine Controller
Featuring external dump load resistor and automatic braking, protecting turbine and battery under high wind.
· Working temp: -25°C to 45°C.
· System Voltage: 48V
· LCD Real-Time Display
· Built-in Braking Protection

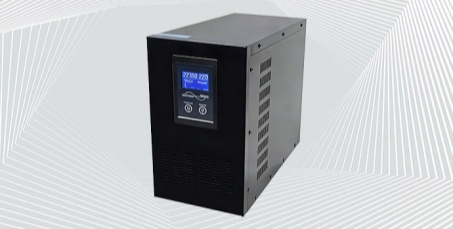

5) 8300W Hybrid Inverter
Combines inverter and energy management functions into one compact unit.
· Rated Output: 8300W
· Output Voltage: 220V
· Frequency: 50Hz
· Intelligent Energy Management

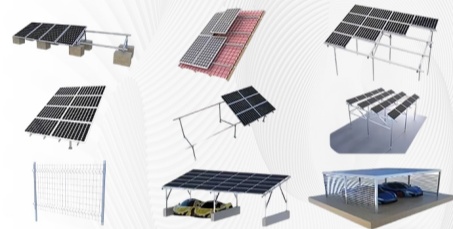

6) Wind & Solar Mounting Structure
Provides stable installation and long-term outdoor durability.
· Wind Turbine Tower
· Solar Mounting Structure
· Corrosion Resistant
· Suitable for Various Terrains
The 13kW Hybrid Energy Kit is suitable for locations where reliable electricity is required but grid access is limited, unstable, or unavailable. With a combination of renewable energy generation and battery storage, the system can support continuous operation of residential facilities, agricultural equipment, communication devices, monitoring systems, and automated infrastructure.
Typical applications include capsule houses, vacation cabins, modular buildings, small farms, eco camps, robot charging stations, security monitoring sites, communication base stations, remote offices, and other projects requiring long-term independent power supply.
Vacation Cabin

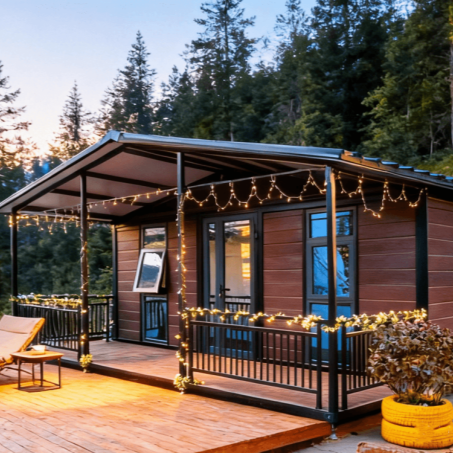

Expandable House

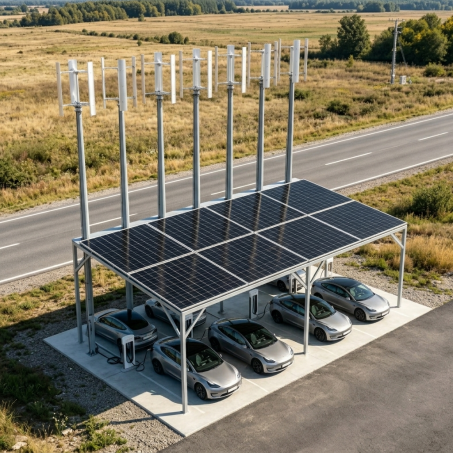

Outdoor EV Charging Stations

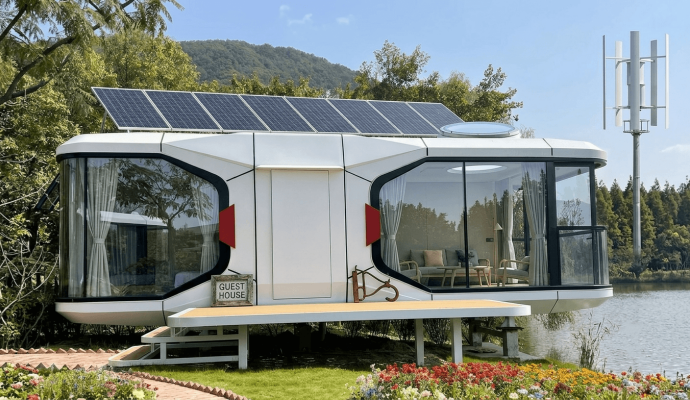

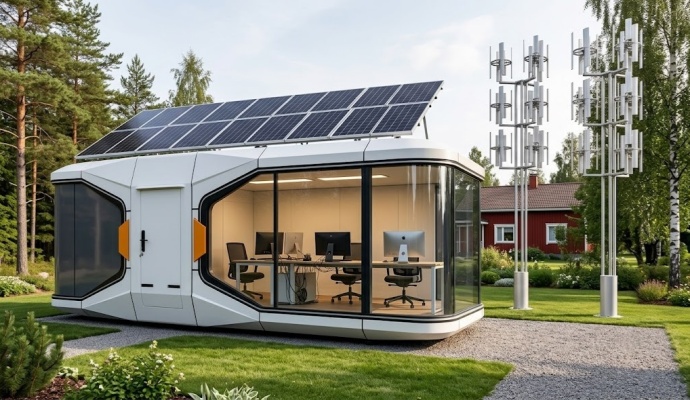

The SP-29X capsule house with a 13kW wind-solar hybrid system provides a complete off-grid living solution, powering air conditioning, lighting, appliances, and daily residential needs.
· House Model: SP-29X
· Area: 29.3 m2
· Max Load: 13kW
· Energy System: 13kW Hybrid Kit

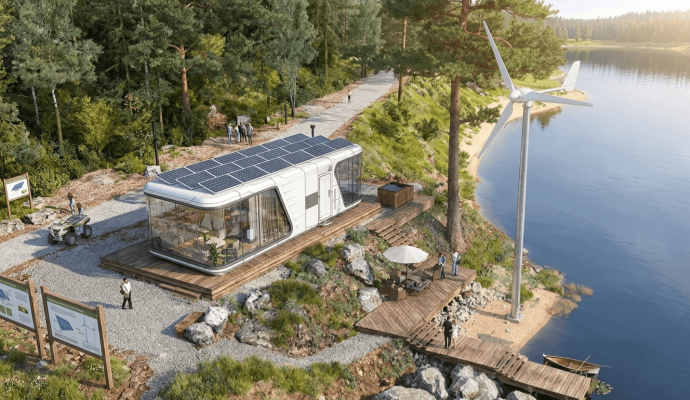

Designed for eco-resorts and tourism projects, this solution combines renewable energy and modular accommodation, reducing grid dependence and supporting sustainable operation.
· House Model: SP-30X
· Area: 30 m2
· Max Power: 13.5kW
· Energy System: 13kW Hybrid Kit
A larger living space paired with renewable energy generation and battery storage, suitable for long-term accommodation in remote locations.
· House Model: SP-40
· Area: 39.7 m2
· Max Power: 12kW
· Energy System: 13kW Hybrid Kit
