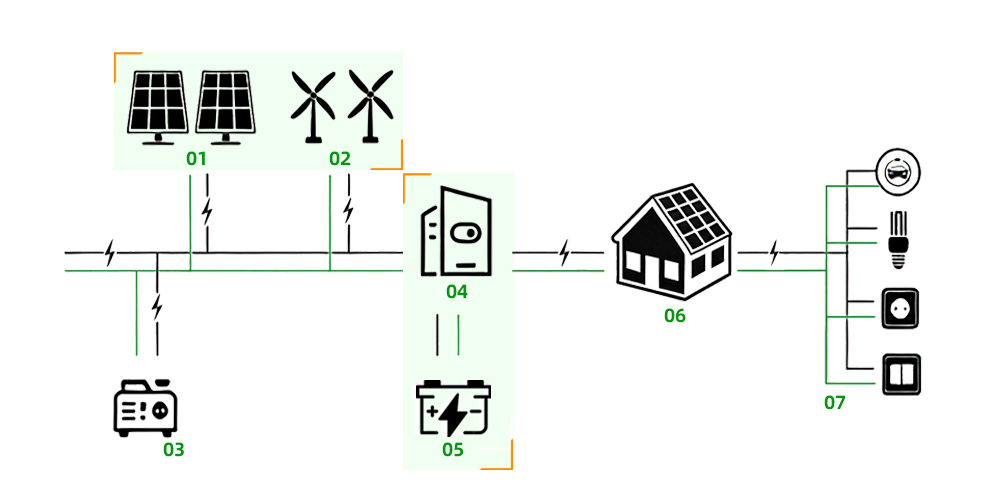

01 Solar Panel
02 Wind Turbine
03 Generator
04 Inverter
05 Battery Storage
06 Prefabricated Villa
07 Electrical Loads
01 Rainwater Collection Gutter
02 Atmospheric Water Generator
03 Water Pump
04 Water Storage Tank
05 Stage‑1 Filter (Pre‑Filter)
06 Stage‑2 Filter (Domestic Water Filter)
07 Stage‑3 Filter (Drinking Water Filter)
08 Integrated Wastewater Treatment Unit
The 20kW Off-Grid Hybrid Energy Kit is designed for medium-to-large projects requiring reliable independent electricity. Combining an 8kW wind turbine, 12kW solar array, and 50kWh lithium battery storage system, it delivers stable day-and-night power generation while reducing reliance on diesel generators and utility grids.
The system is ideal for agricultural facilities, villas, eco-resorts, commercial buildings, robot charging stations, and remote infrastructure projects.
1. One-Stop Energy, Housing and Water Solutions;
2. Complete Off-Grid Energy Solution;
3. Day & Night Renewable Energy Supply;
4. 50kWh Large-Capacity Battery Storage;
5. Reduced Diesel Generator Dependence;
6. Intelligent Energy Management;
7. Scalable System Design.
| Item | Specification |
| System Capacity | 20kW |
| Solar Capacity | 12kW |
| Solar Panels | 585W × 21 pcs |
| Wind Turbine | 8kW Permanent Magnet |
| Battery Storage | 50kWh Lithium Battery |
| Battery Voltage | 51.2V |
| Battery Type | Stackable LiFePO4 |
| Inverter | 12kW Hybrid Inverter |
| Output Voltage | 220V |
| Frequency | 50Hz |
| Monitoring | WiFi Optional |
| Application Type | Off-Grid / Hybrid |
Suitable for medium-sized residential, agricultural, and commercial applications.
| Equipment | Typical Quantity |
| Air Conditioner (1–1.5HP) | 4–6 Units |
| Refrigerator | 3–5 Units |
| Television | 3 Units |
| LED Lights | 40–80 Units |
| Laptop | 10–15 Units |
| Water Pump | 2–3 Units |
| Washing Machine | 2 Units |
| Microwave Oven | 2 Units |
| Electric Water Heater | 1–2 Units |
| Agricultural Equipment | Multiple Units |
Actual operating time depends on local wind conditions, solar radiation, battery capacity, and load demand.
1) 8kW Low-Speed Permanent Magnet Wind Turbine
Designed for stable power generation in low and medium wind conditions.
· Rated Power: 8kW
· Permanent Magnet Generator
· Fiberglass Blades
· Low Maintenance
2) 12kW Solar Power System
Consists of 21 high-efficiency 585W monocrystalline solar panels.
· Total Capacity: 12kW
· 585W x 21 Panels
· High Conversion Efficiency
· Long Service Life
3)50kWh Lithium Battery Storage System
Provides reliable day-and-night energy storage and backup power.
· Capacity: 50kWh
· LiFePO4 Technology
· Stackable Design
· 3-year Warranty
4) 8kW Wind Turbine Controller
Coordinates wind generation and battery charging while ensuring safe system operation.
· Rated System: 8kW
· LCD Display
· Wind Turbine Brake Function
· Multiple Protection Functions
5) 12kW Hybrid Inverter
Integrates inverter and energy management functions into one intelligent unit.
· Rated Output: 12kW
· Pure Sine Wave Output
· Intelligent Energy Management
· Stable Operation
6) Wind & Solar Mounting Structure
Provides stable installation and long-term outdoor durability.
· Wind Turbine Tower
· Solar Mounting Structure
· Corrosion Resistant
· Suitable for Various Terrains
The 20kW Off-Grid Hybrid Energy Kit is suitable for projects requiring high-capacity renewable energy and reliable independent power supply. By combining wind energy, solar power, and battery storage, the system supports residential facilities, agricultural operations, commercial buildings, robot charging stations, communication infrastructure, and remote industrial applications.
Typical applications include villas, farms, eco-resorts, modular buildings, robot base stations, irrigation systems, communication stations, remote offices, and other medium-to-large projects seeking long-term energy independence.

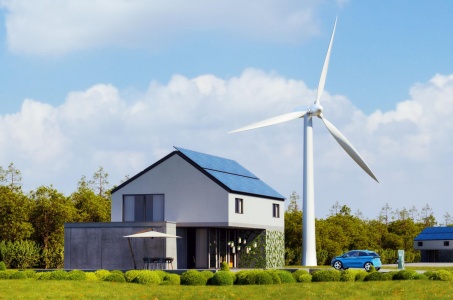

Villas
Agricultural Operations

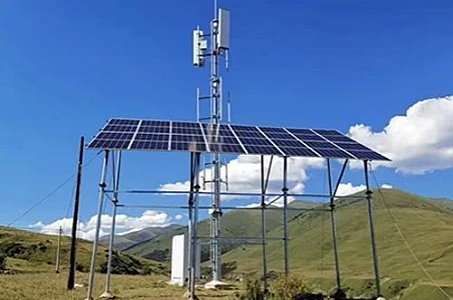

Communication Stations
