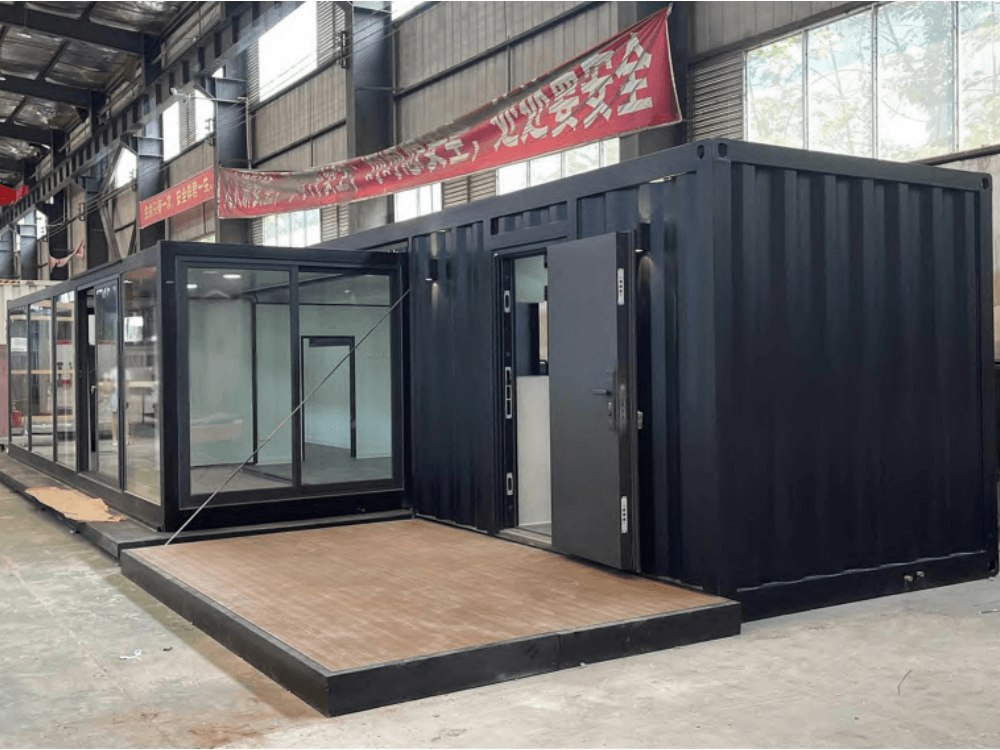

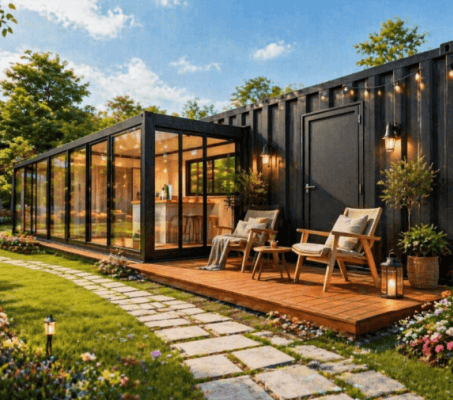

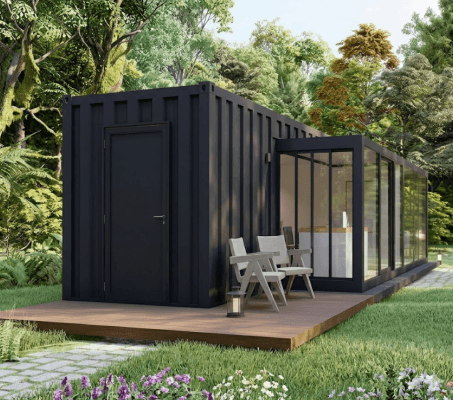

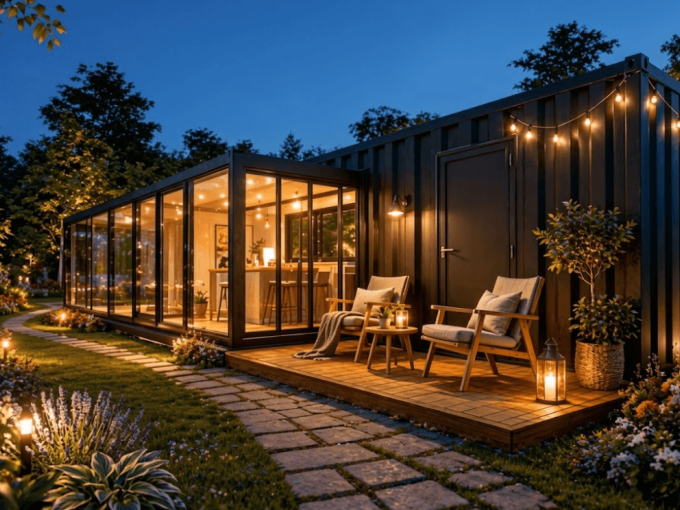

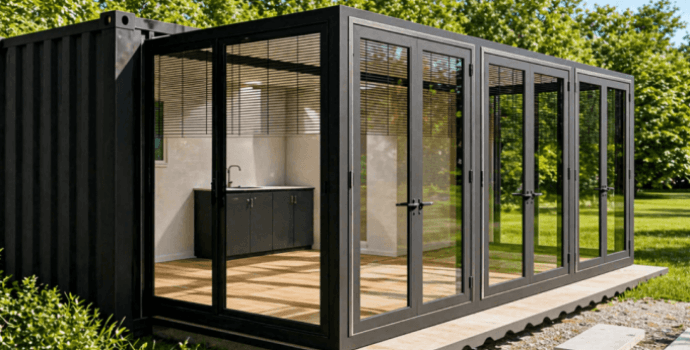

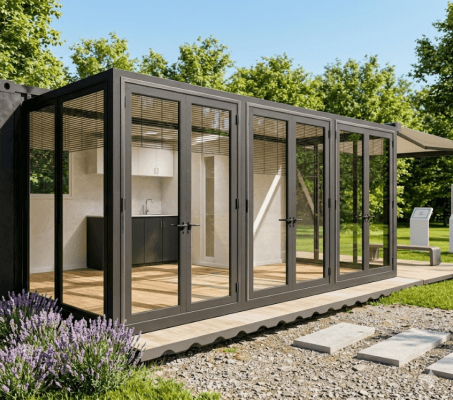

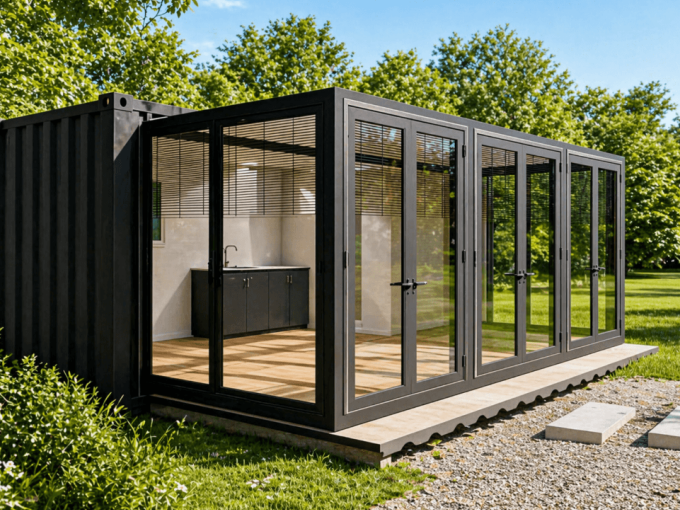

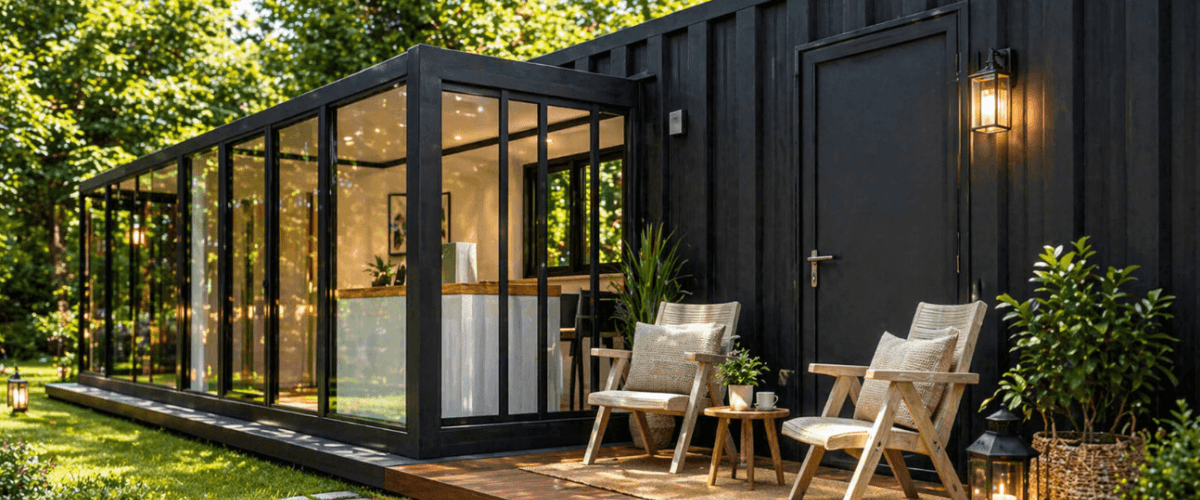

Modern expandable container house can be rapidly deployed and folded according to demand, shortening construction cycles and reducing transportation costs. It offers excellent scalability with vertical expansion capabilities, enabling flexible spatial adaptation. Structurally, it incorporates advanced thermal insulation and waterproofing technologies to ensure durability and comfort in harsh environments. This versatile solution is widely applicable for scenic areas, vacation rentals, residential use, retail spaces, and more.
1.Thermal insulation and heat retention.
2.Energy saving and environment friendly.
3.Easy for disassembled and reassembled.
4.Customized design, factory prefabrication.
5.Optional integrated distributed water and energy solutions, combined with multifunctional modular furniture systems, enabling efficient space utilization and independent living support
Products are meticulously crafted from high-hardness, high-strength premium raw materials to ensure a solid foundation. Each batch undergoes rigorous testing by third-party authoritative institutions, guaranteeing quality assurance in hardness, wear resistance, and safety.
Featuring an innovative modular integrated design, the structure is precision-engineered for durability, ensuring overall stability and safety. The standout feature is its ability to be easily moved as a single unit without disassembly, supporting repeated assembly and disassembly without compromising performance. Whether adapting to scene changes, space reconfigurations, or temporary setups, it handles transitions effortlessly, significantly boosting utilization efficiency and delivering lasting value through versatile functionality.
Featuring an innovative modular snap-fit design, the product requires no specialized tools or complex procedures, enabling rapid assembly and disassembly by a single person. This design reduces traditional installation time by up to 70%, significantly lowering reliance on skilled labor and overall labor costs. It facilitates rapid deployment and flexible adjustments, substantially enhancing overall project efficiency and economic benefits.
Crafted from premium, wear-resistant and weather-resistant base materials with a sturdy structure, ensuring enduring stability even after years of use. Offering diverse components, color options, and material choices, these units can be freely combined and easily replaced—like building blocks—to create a uniquely personalized style.
*Due to the custom nature of these products, dimensions, materials, and other specifications are provided as examples only. Actual dimensions, materials, and other details must be confirmed during the customization process.
| Model | EC40Z | EC20Z |
| External Size | 11.8*4.17*2.5m | 5.8*4.32*2.5m |
| Folded Size | 11.8*2.2*2.5m | 5.8*2.2*2.5m |
| Wall structure | Waved steel panel+ steel beam+ 5omm insulation layer + integrated wall panel | |
| Steel structure | 2.5-3.0mm welding steel structure | |
| Windows | Fixed glass wall and sliding glass window | Aluminum frame hollow glass window |
| Exterior door | Glass sliding door | Steel security Door |
| Interior door | Wood door | Glass door |
| Floor | Steel panel + steel beam+basement board+ solid wood floor | |
| Automatic system | Winches, steel ropes, remote controller | |
| Bathroom | Shower, sitting toilet, wash basin,mirror(tiles for bathroom) | |
| Kitchen | Wooden top kitchen cabinet,stainless steel kitchen sink, tap | |
| Plumbing system | 32mm PPR for water pipe, 11Omm PVC for waste pipe | |
| Electricity system | Switch,socket,led light,waterproof socket,distribution box | |
| Shipping | Loading into 4oHQ sea container to ship | |
This vertically expandable container home is ideal for areas with limited space or remote locations. It can be quickly assembled on small plots of land and subsequently expanded to create additional living or workspace—making it perfect for off-grid homes, eco-tourism cabins, or temporary construction site dormitories. With its compact footprint and expandable design, it easily adapts to changing needs while maintaining comfort and functionality.
