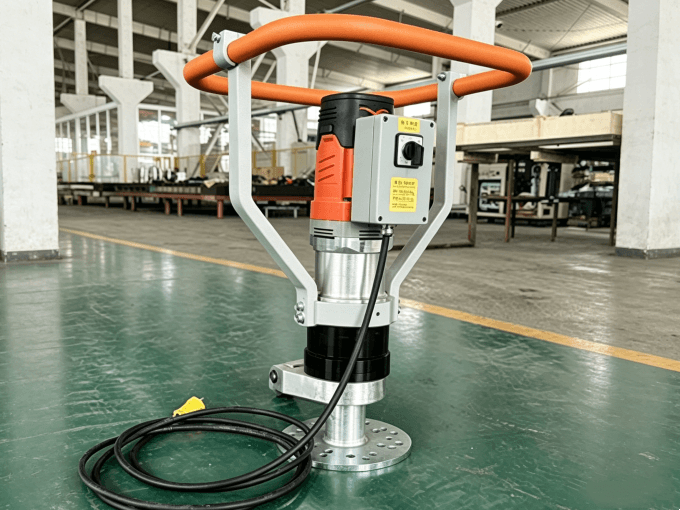

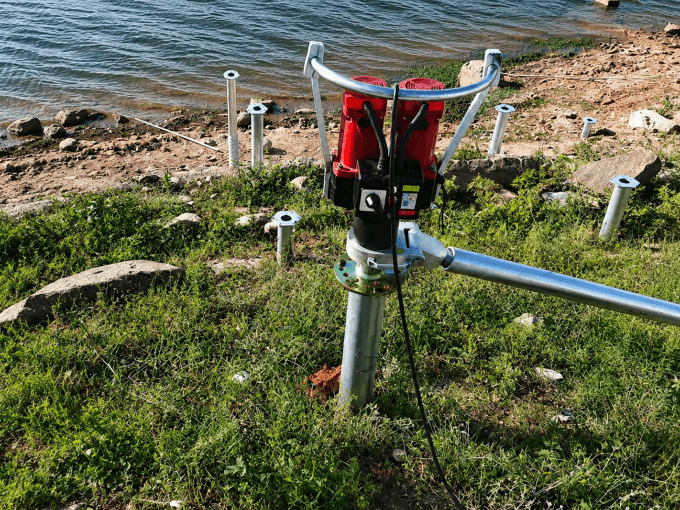

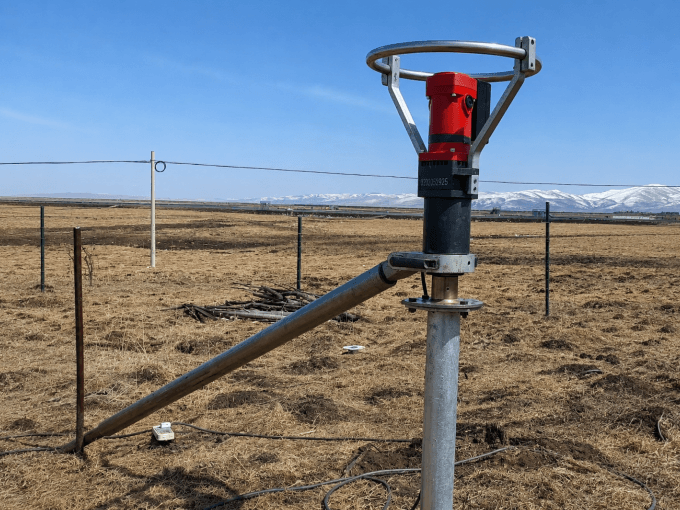

This handheld electric helical pile driver delivers high-torque, efficient installation of ground screws in various soil conditions, and is designed to work seamlessly with our ground screw products for a complete installation solution. Available in single and dual motor options, it is ideal for solar, fencing, and light foundation projects.
1. High Torque Output
Delivers strong and stable torque (6000–10500N) for efficient pile installation, even in challenging soil conditions.
2. Flexible Motor Options

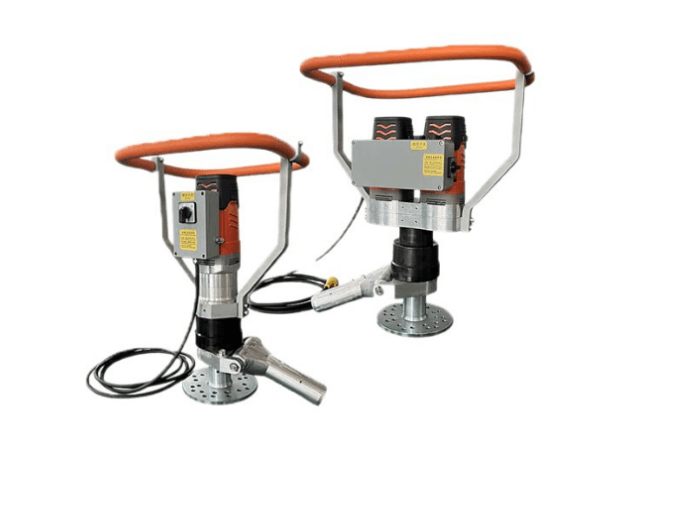

Available in single motor (lightweight & economical) and dual motor (high performance & faster installation) versions to meet different project needs.
3.Portable & Handheld Design
Compact structure with optimized weight (35–45kg), easy to transport and operate on-site without heavy machinery.
| Device Model | HD-5500S | HD-11000D |
| Motor Type | Single Motor | Dual Motor |
| Suitable Soil Conditions | soft soil (such as sand, clay, and farmland) | hard soil (such as compacted earth, gravel, and mixed ground) |
| Torque | 6000－10500N | 6000－10500N |
| Power | 5500W | 11000W |
| Voltage | 220V | 220V |
| Electric Current | 18A | 18A |
| Frequency | 50－60HZ | 50－60HZ |
| Speed | 9.5r/min | 20r/min |
| Adapt to the power of the generator set | 11KW | 15KW |
| Weight | 35KG | 45KG |
| Size | 480*480*680m | 600*420*720mm |
| Packaged Weight | 57KG | 62KG |
| Packaged Size | 520*520*840mm | 680*530*880mm |
| Accessories | One stabilizer bar | One stabilizer bar |
| 2200*110*110mm | 2200*110*110mm | |
| 13.7KG | 13.7KG | |
| Extended to 4.2 meters | Extended to 4.2 meters |

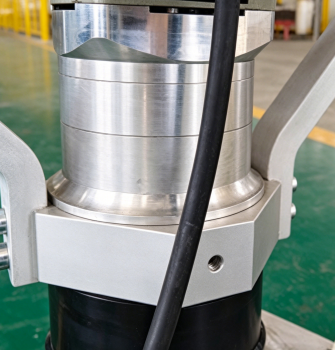

Guide Sleeve
Ensures vertical alignment

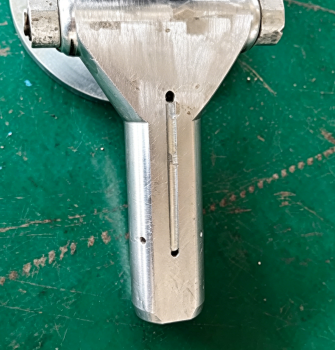

Locking Pin
Secures modular components

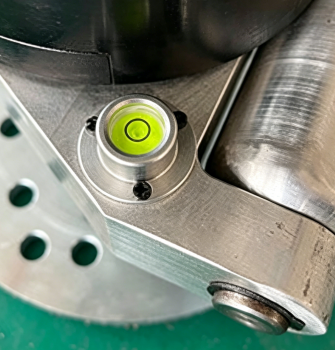

Bullseye Bubble Level
Verifies horizontal leveling

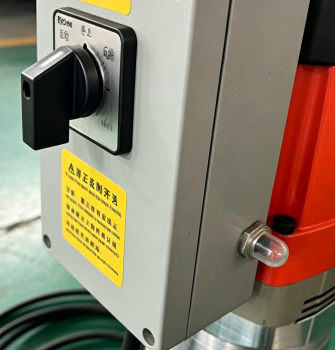

Rotary Switch
Manages power and drive

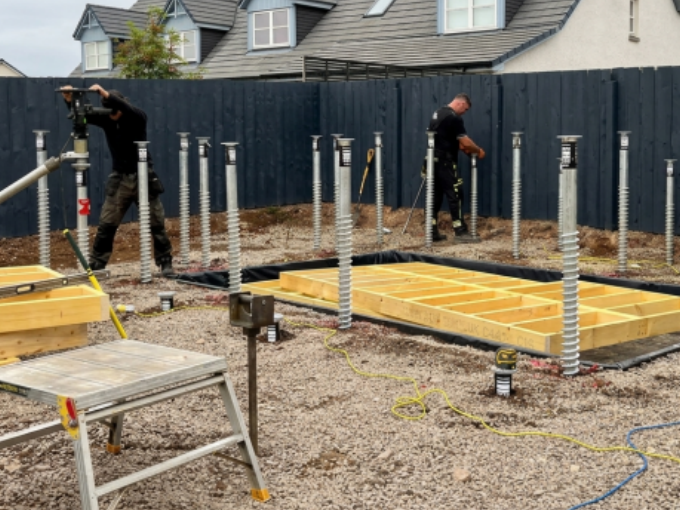

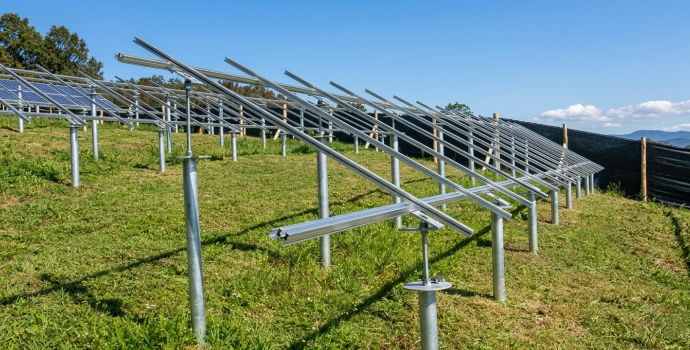

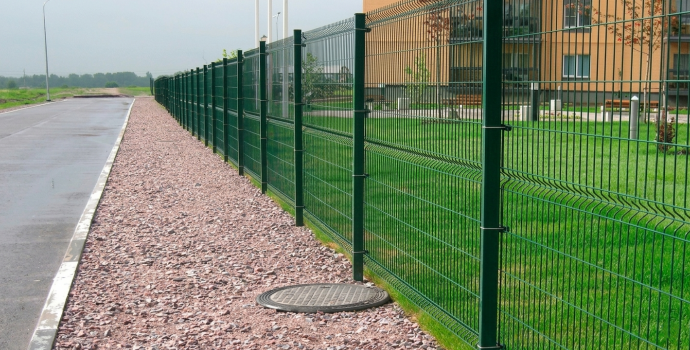

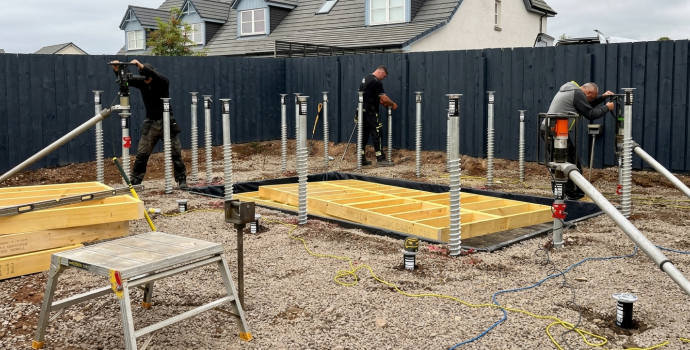

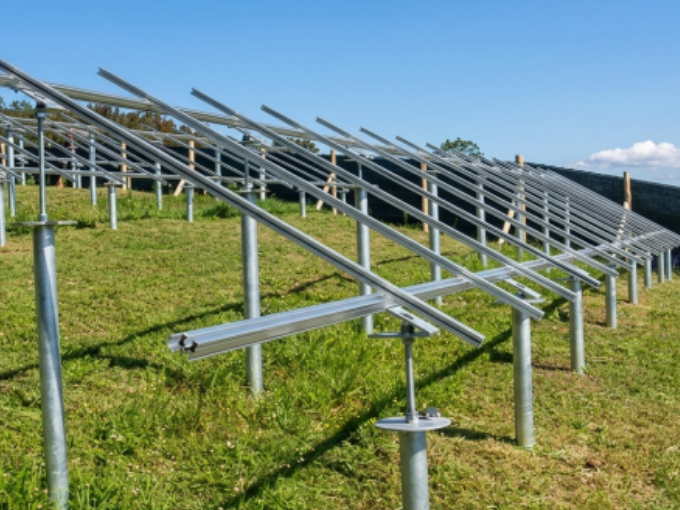

Suitable for a wide range of applications including light foundation construction, solar mounting, fencing, and agriculture. Ideal for off-grid and remote projects where fast installation and mobility are essential.
